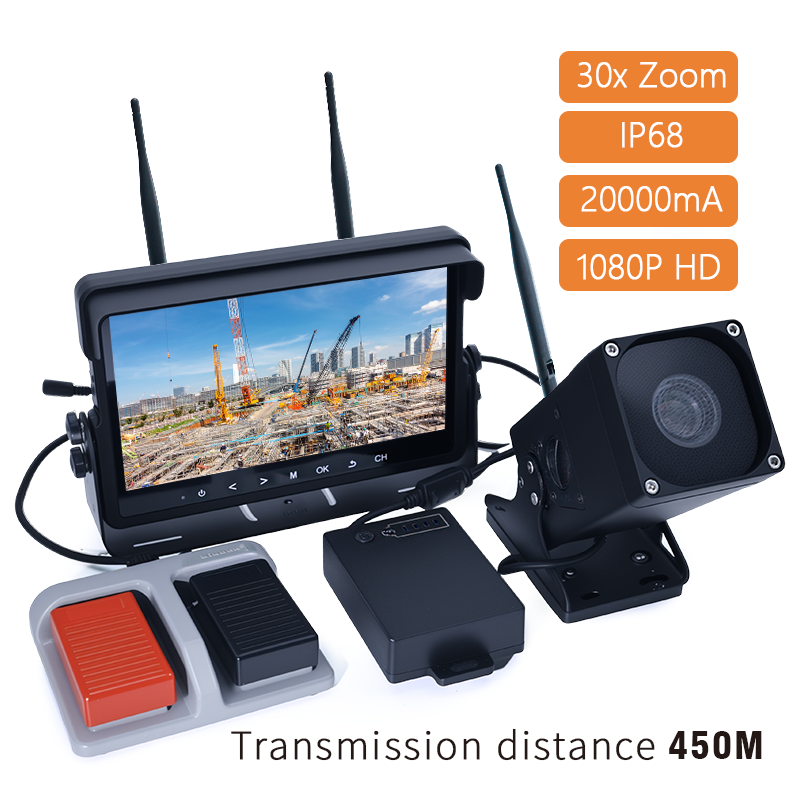

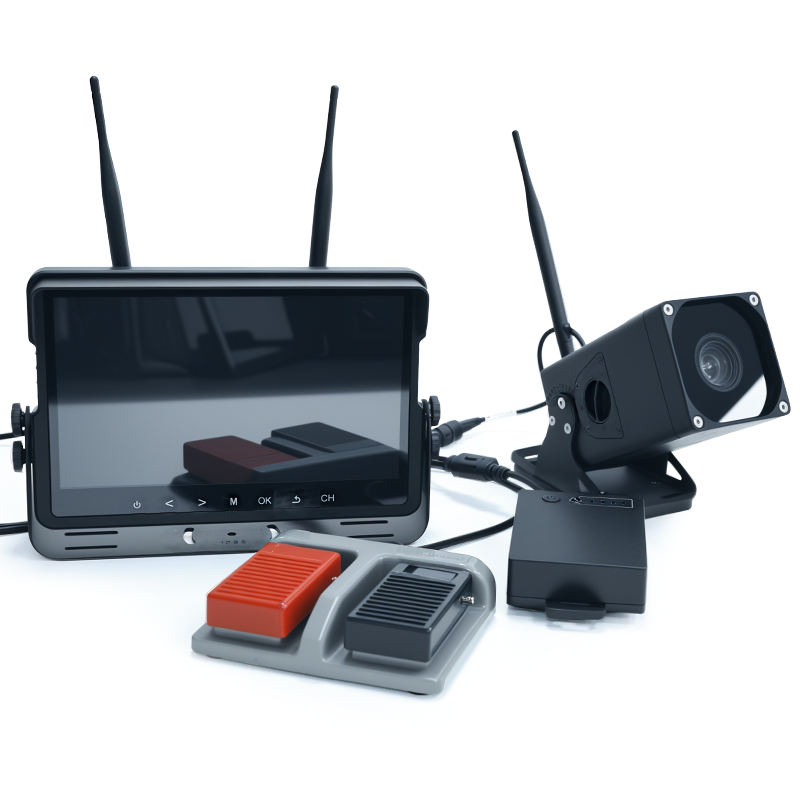

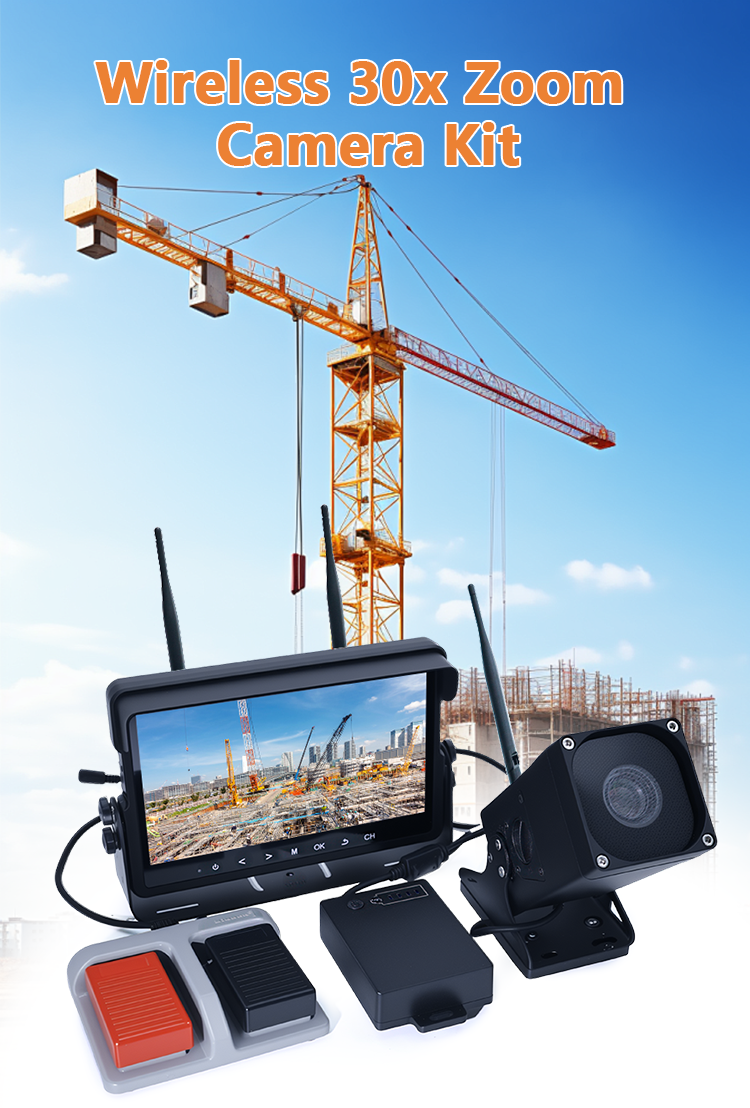

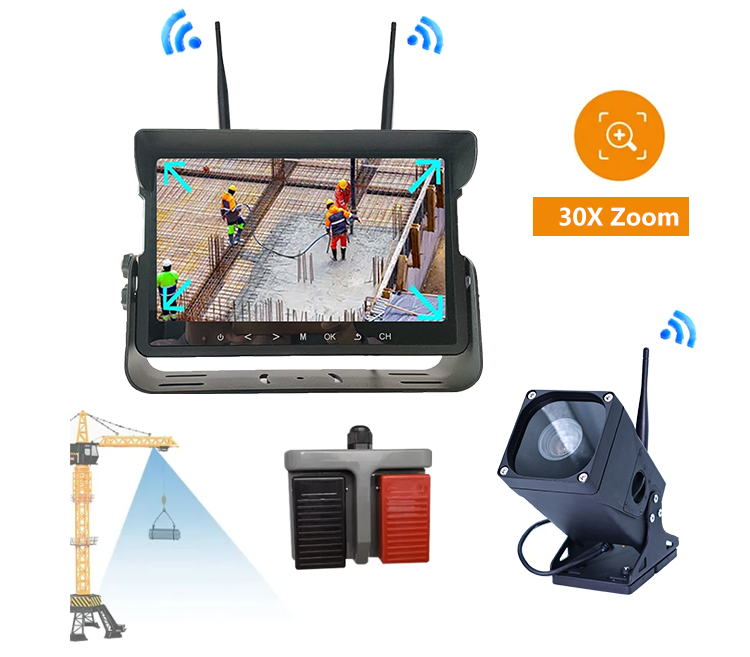

ZY-WZ01 30X 50X Optical Zoom Wireless Camera 2.4GHz Wireless Transmission 10.1-inch Waterproof Monitor AHD 1080P Crane Camera

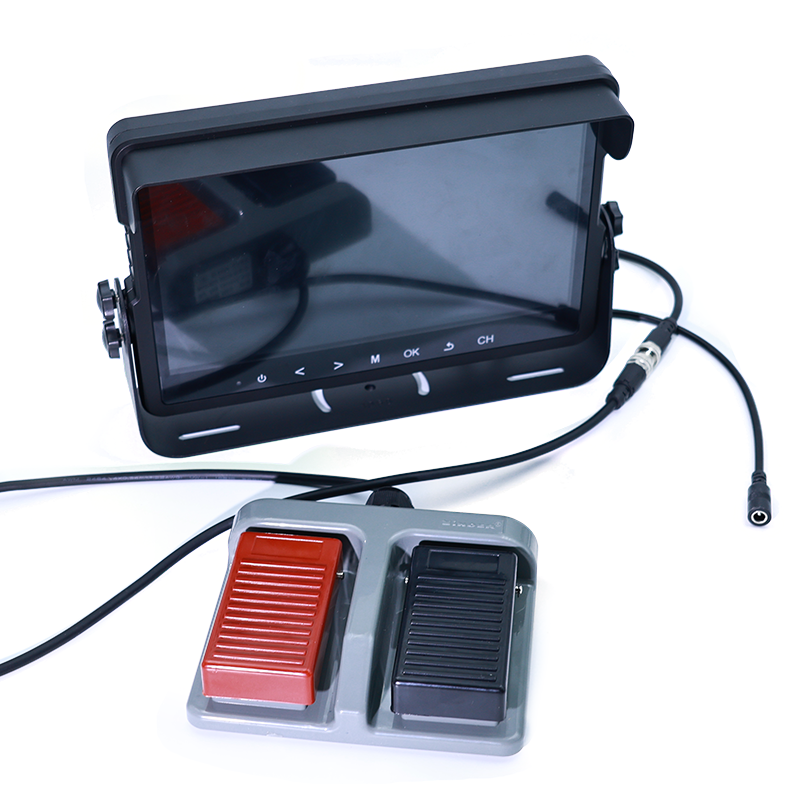

Monitor:
|
Item |
Parameter |
|
Screen |
10.1 inch IPS LCD |
|
Screen ratio |
16:09 |
|
Resolution |
1024*600 |
|
Brightness |
600cd/m2 |
|
Contrast |
800:01:00 |
|
OSD Control |
English |
|
Video display |
It can support 1-to-1, 1-to-2, and 1-to-4 video display |
|
Optional function |
SD card storage |
|
Operating voltage |
DC 12-35V |
|
Power dissipation |
<5W |
|
Maximum current |
<1000mA |
|
Operating temperature |
-20 to 70 ºC |
|
Storage temperature |
-30 to 80 ºC |
|
2.4G wireless transmission distance |
Open distance 500m |
|
2.4g wireless bandwidth range |
2403-2480MHz |

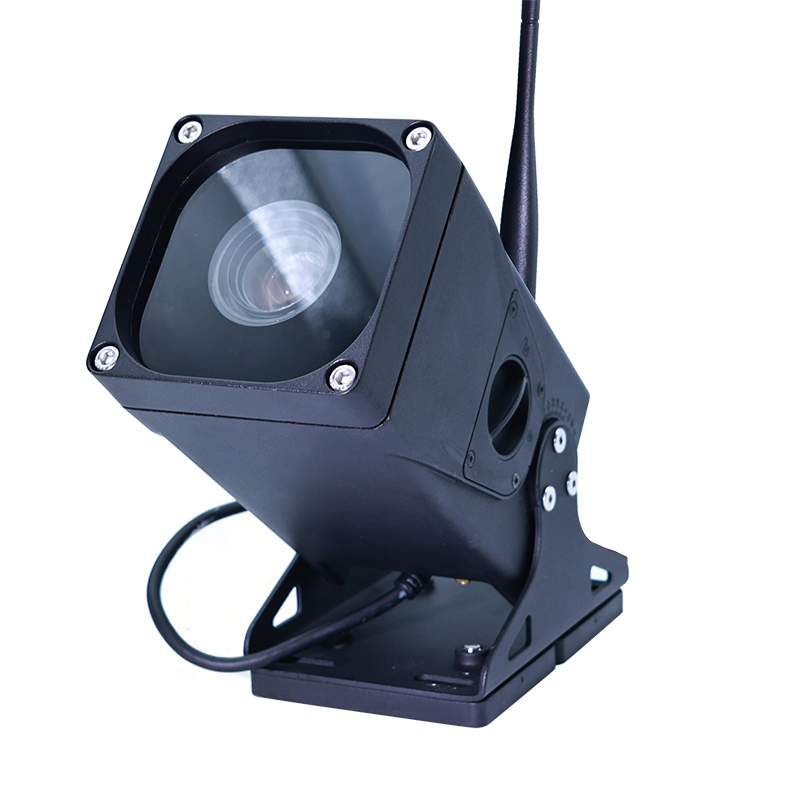

30X Camera
|
Item |
Parameter |
|
|
Sensor |
1/2.7 CMOS |
|
|
Effective pixel |
1920H*1080 V |
|
|
Focusing mode |
Automatic focus |
|
|
Focus Length |
4.7~ 141mm |
|
|
F No. |
F1.5(Wide)~F4.0(Tele) |
|
|
Focus Range |
Wide: 0.1m ~INF |
|
|
Field of View Angle |
Wide |
Tele |
|
|
69.5 |
2.7 |
|
|
60.5 |
2.3 |
|
|
35.1 |
1.3 |
|
Night vision range |
30 m |
|
|
Operating voltage range |
DC 12V |
|
|
Power dissipation |
<5W |
|
|
Maximum current |
<400mA |
|
|
Magnification Range |
1-30x (50x Optional) |
|

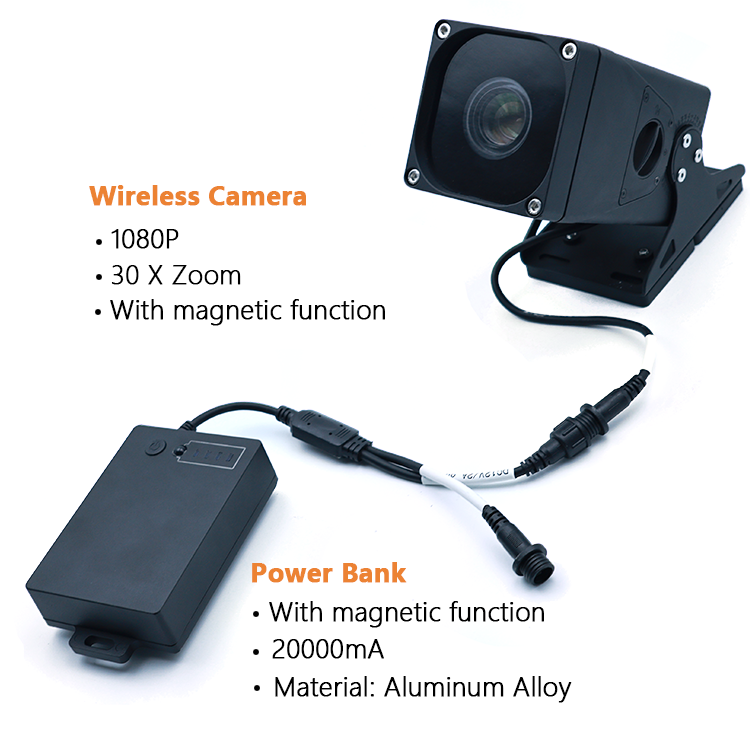

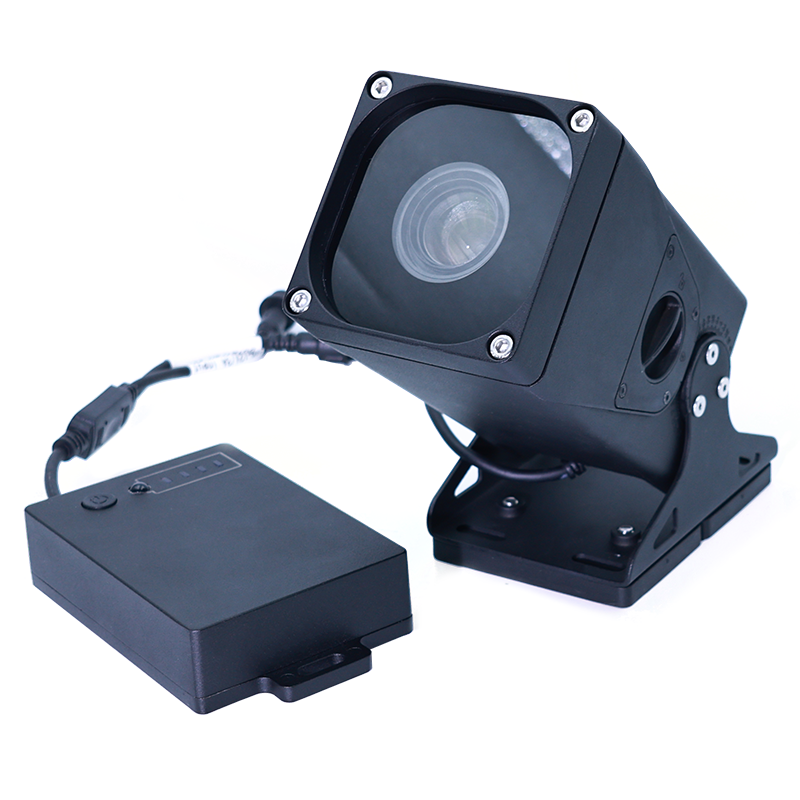

Magnetic Power Bank

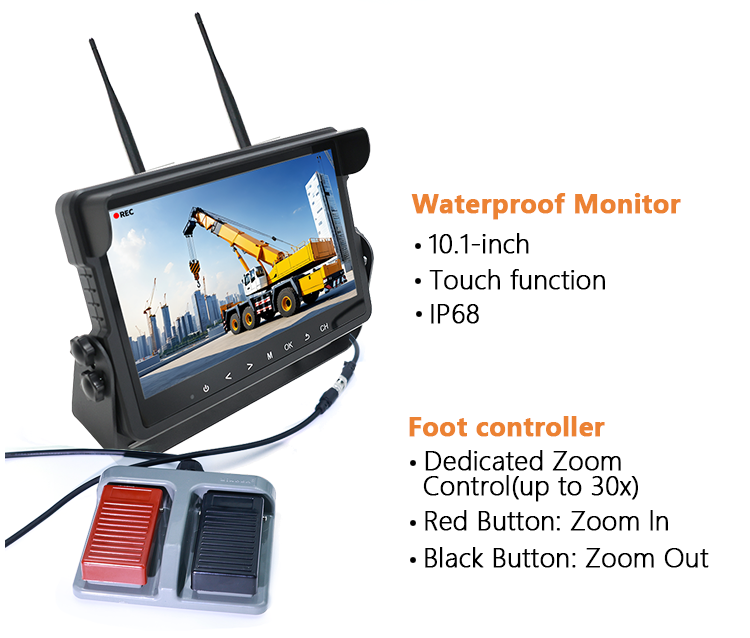

Foot Pedal
