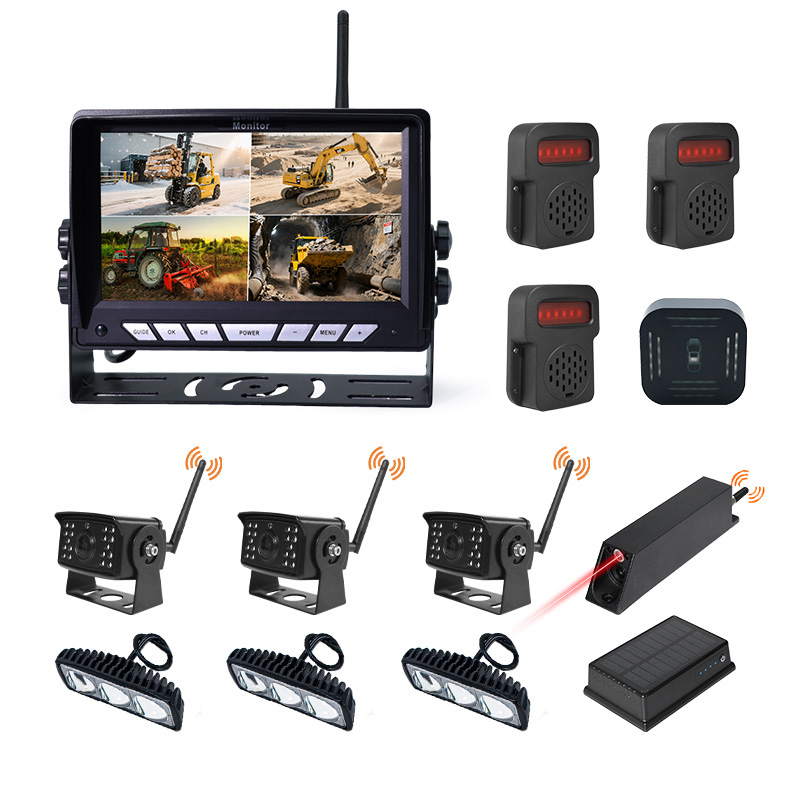

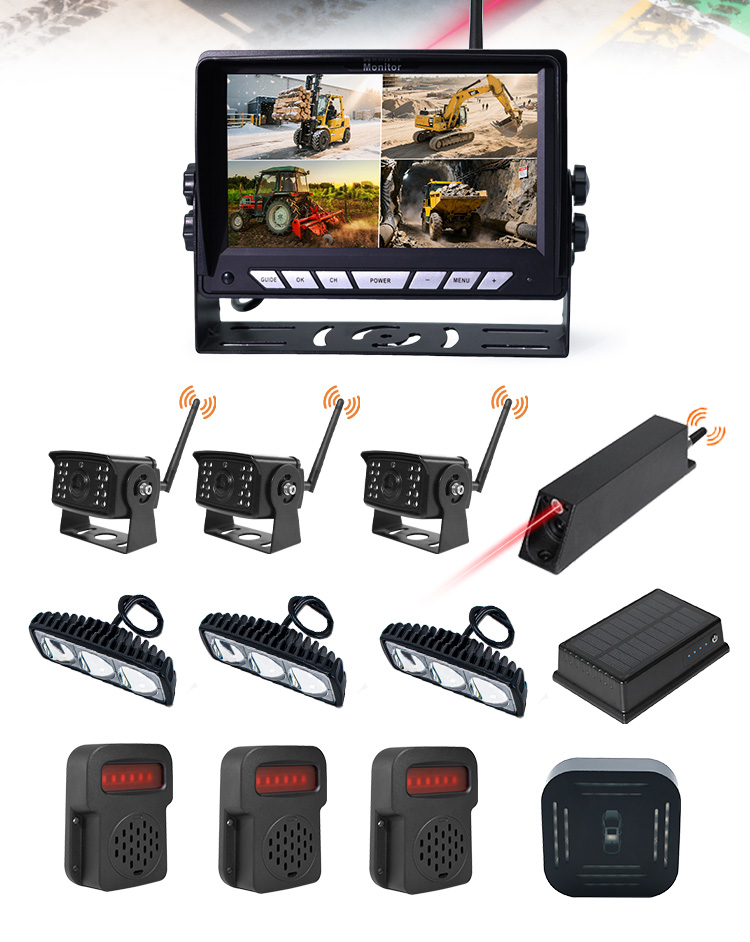

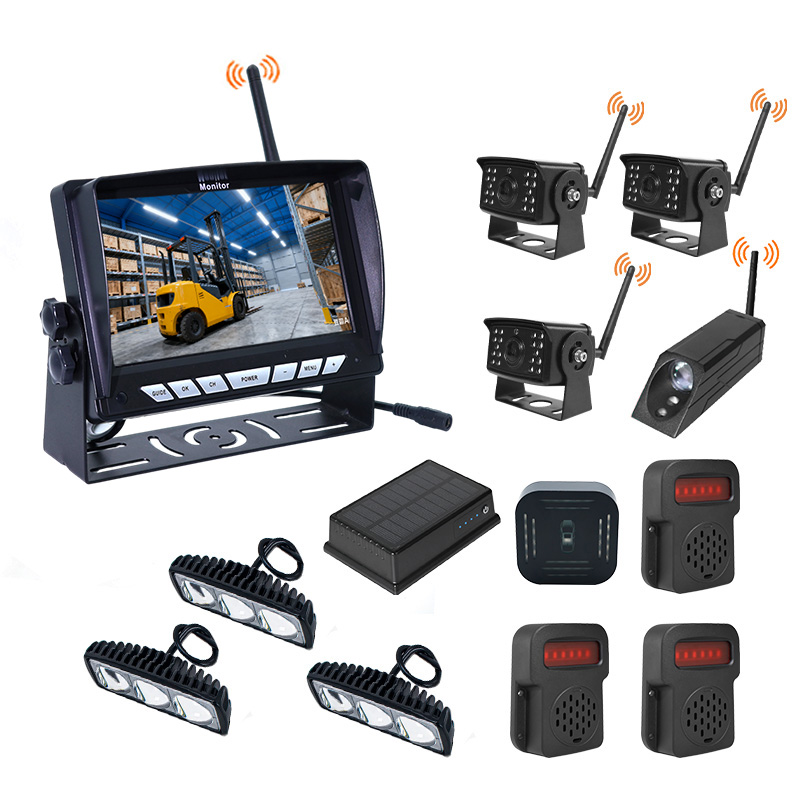

ZY-W741-BSD 4 Channel Wireless Forklift BSD Safety System With Magnetic Laser Camera

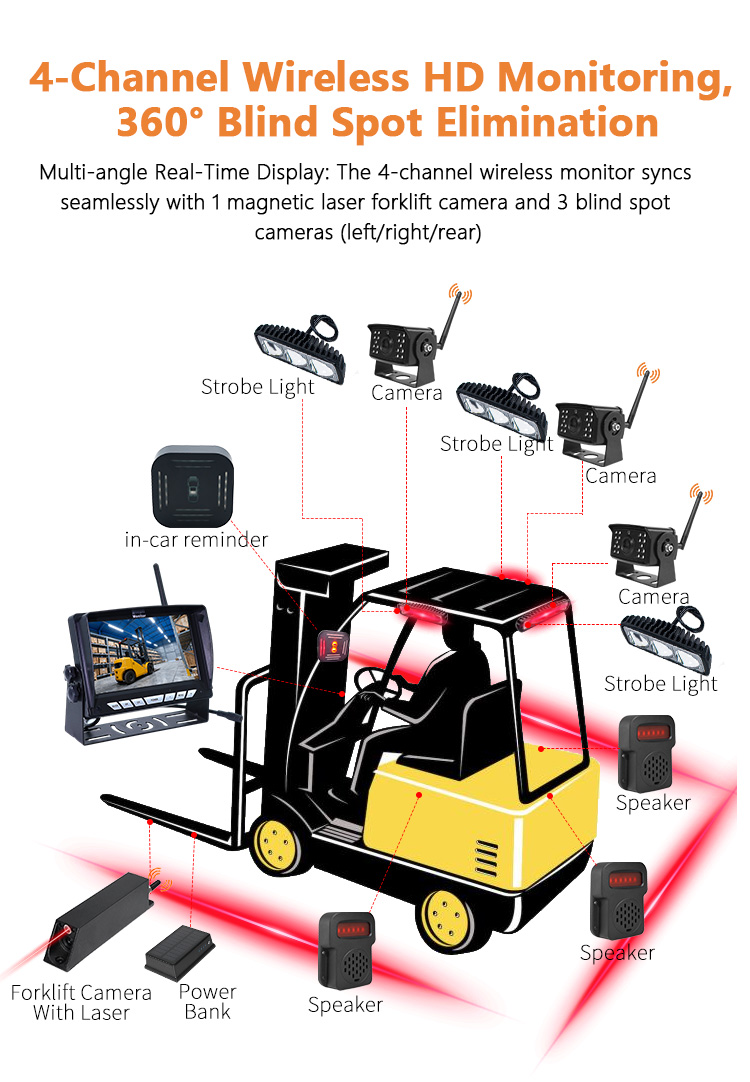

  1. 4-Channel Wireless HD Monitoring, 360° Blind Spot Elimination

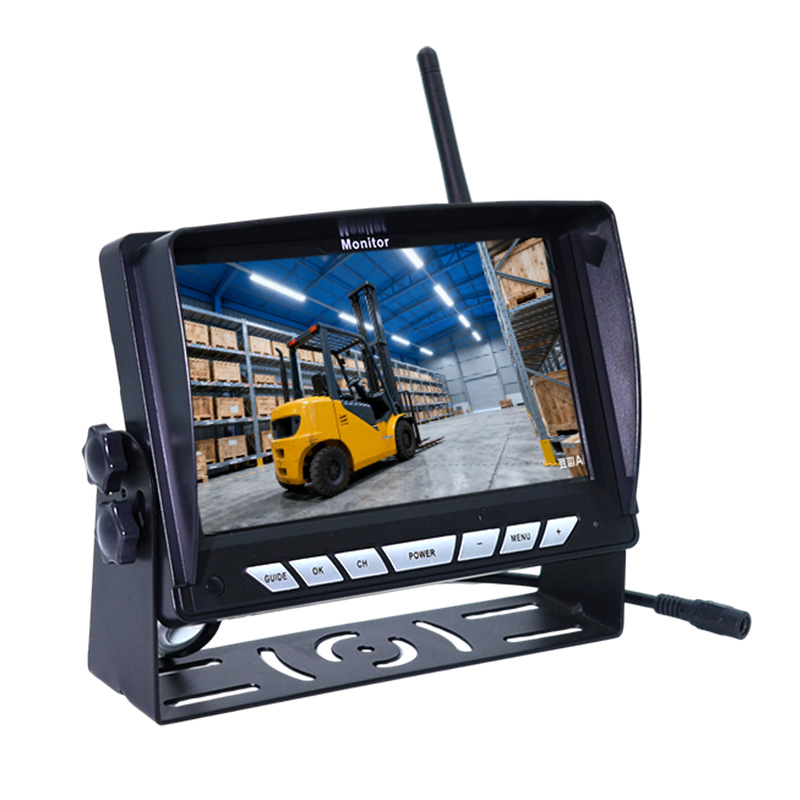

>Multi-angle Real-Time Display: The 4-channel wireless monitor syncs seamlessly with 1 magnetic laser forklift camera and 3 blind spot cameras (left/right/rear)

>Wireless Installation Advantage

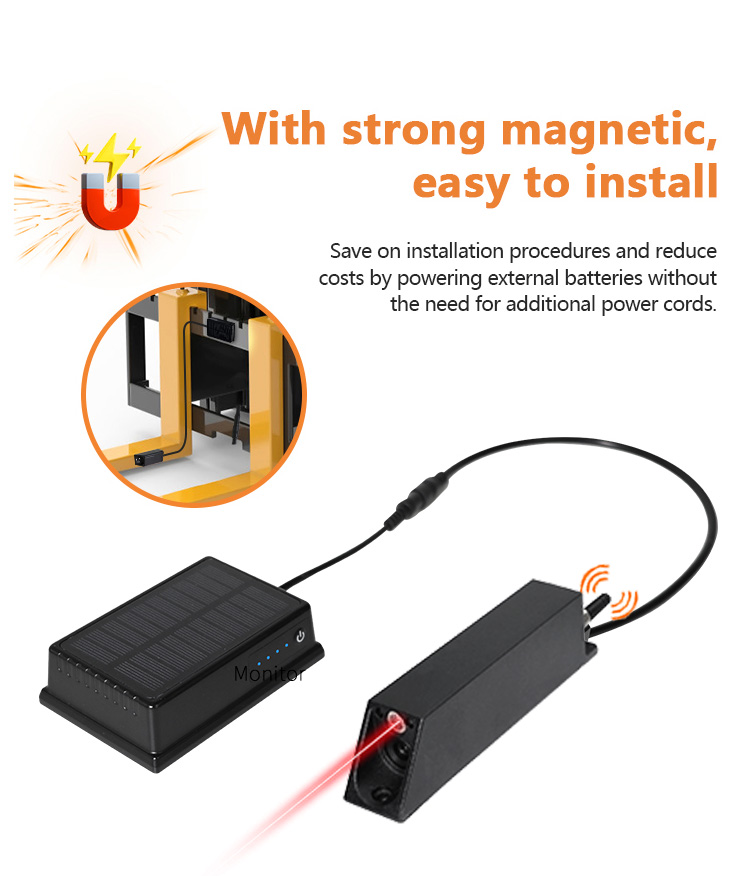

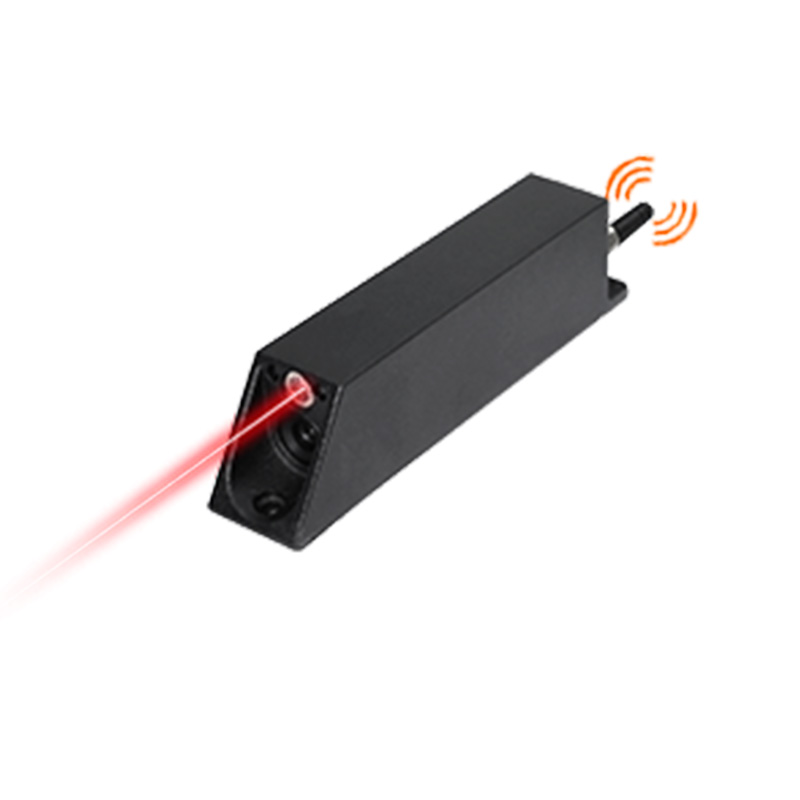

  1. Magnetic Laser Forklift Camera, Precise Positioning & Flexible Installation

>Strong Magnetic Adsorption

>Laser Positioning Technology

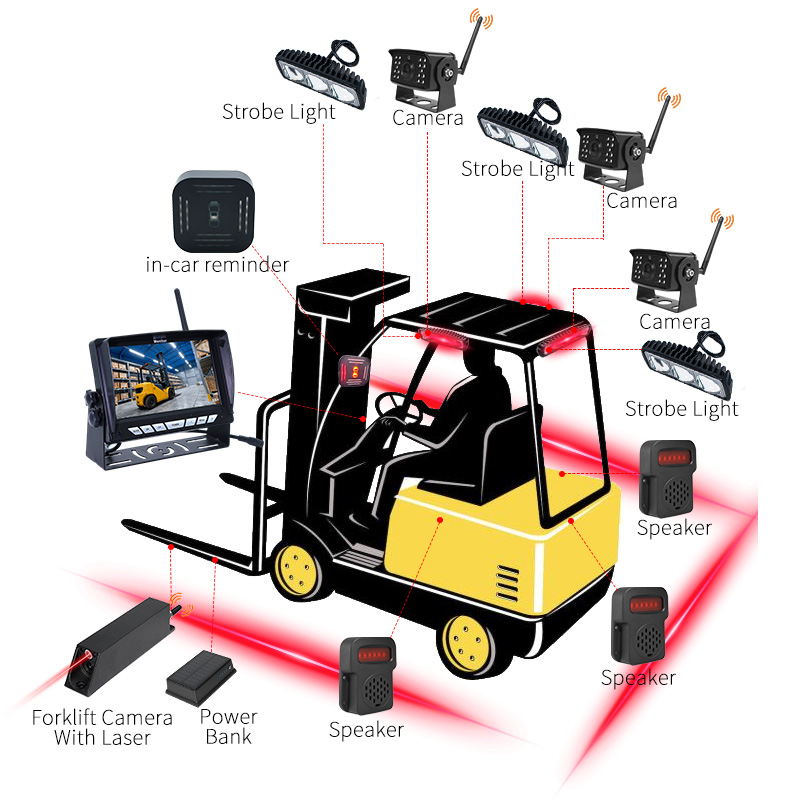

  1. 3-Zone BSD Active Warning System, Dual Alert for Maximum Safety

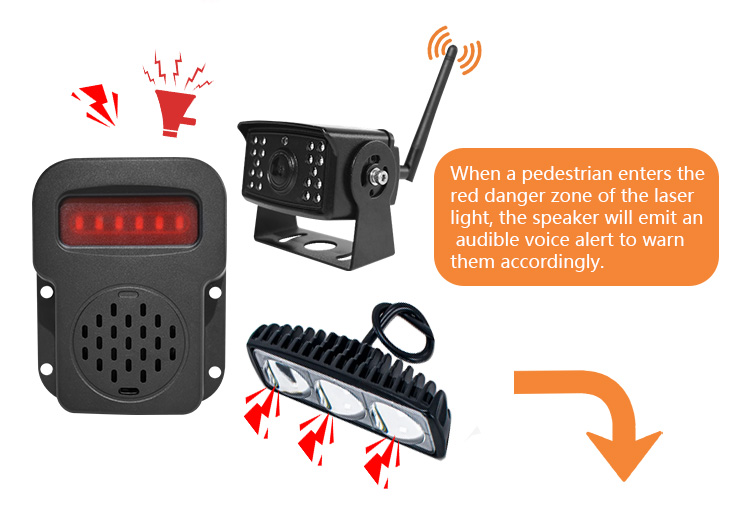

>Customized Blind Spot Protection: Each of the 3 left/right/rear blind spot cameras is paired with an independent strobe light and audible-visual alarm. The 3 strobe lights project bright, distinct warning zones on the ground, clearly defining high-risk areas around the forklift that are invisible to the operator.

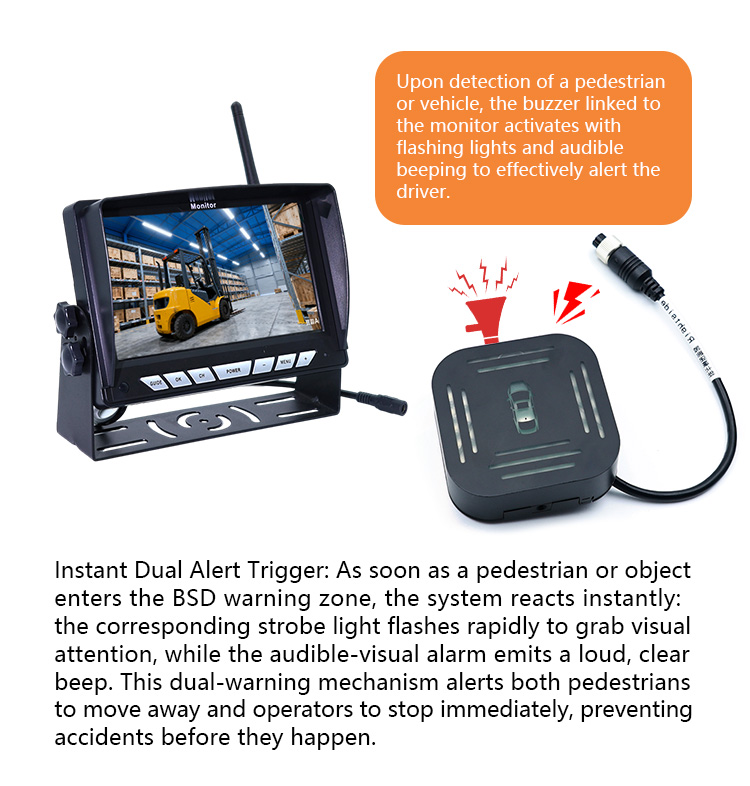

> Instant Dual Alert Trigger: As soon as a pedestrian or object enters the BSD warning zone, the system reacts instantly: the corresponding strobe light flashes rapidly to grab visual attention, while the audible-visual alarm emits a loud, clear beep. This dual-warning mechanism alerts both pedestrians to move away and operators to stop immediately, preventing accidents before they happen.

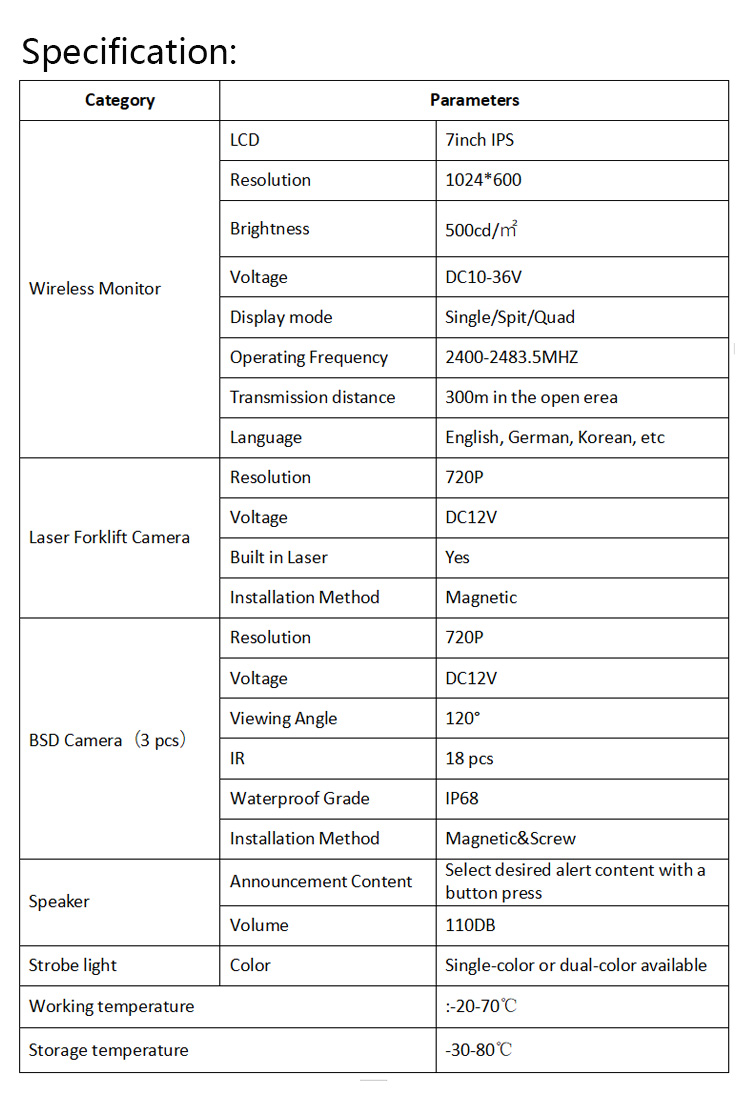

    Specification:

    Category

    Parameters

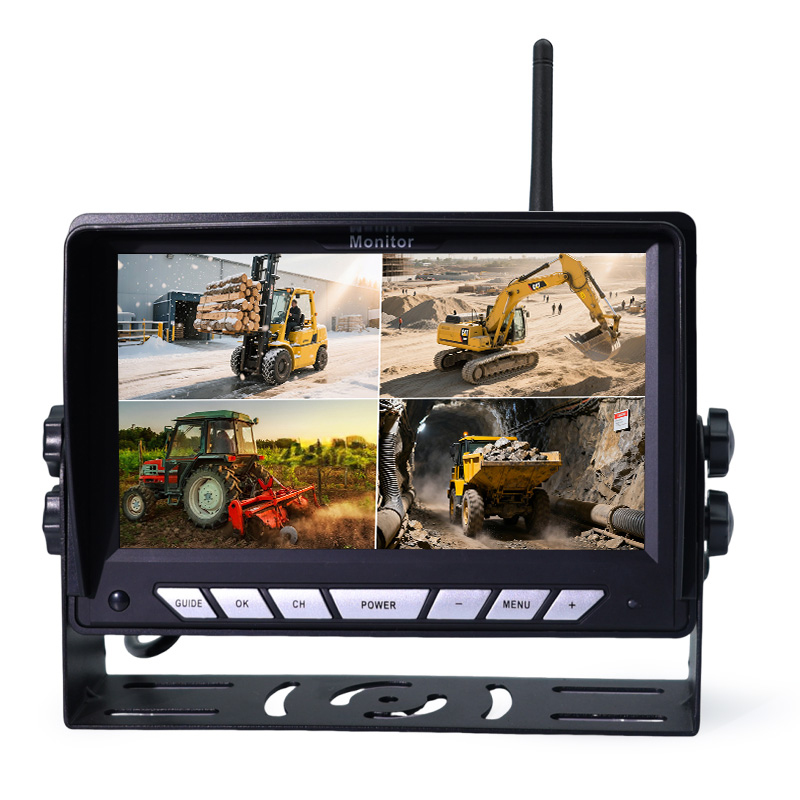

    Wireless Monitor

    LCD

    7inch IPS

    Resolution

    1024*600

    Brightness

    500cd/

    Voltage

    DC10-36V

    Display mode

    Single/Spit/Quad

    Operating Frequency

    2400-2483.5MHZ

    Transmission distance

    300m in the open erea

    Language

    English, German, Korean, etc

    Laser Forklift Camera

    Resolution

    720P

    Voltage

    DC12V

    Built in Laser

    Yes

    Installation Method

    Magnetic

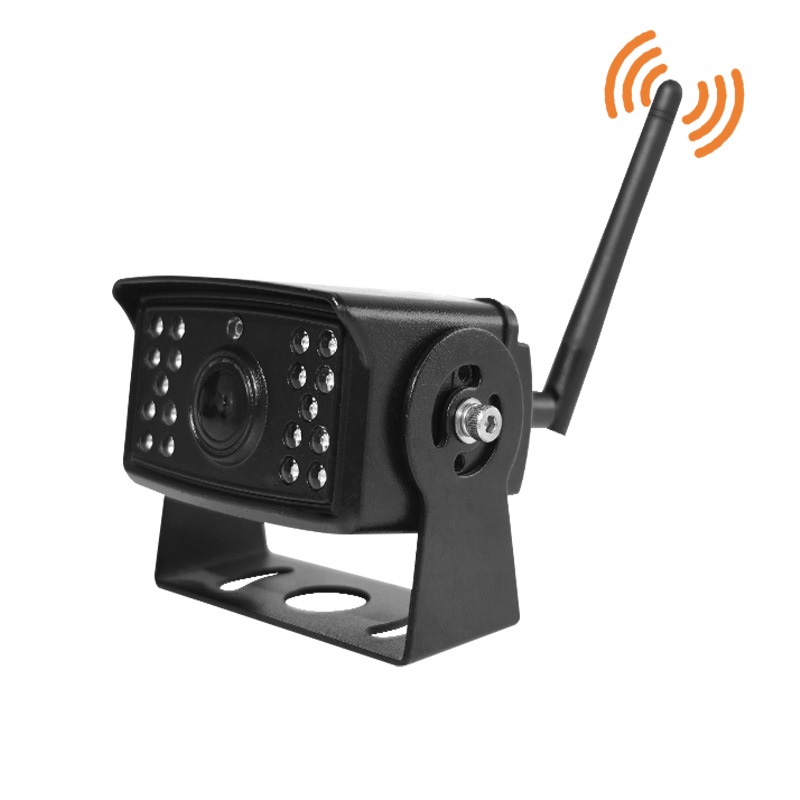

    BSD Camera3 pcs

    Resolution

    720P

    Voltage

    DC12V

    Viewing Angle

    120°

    IR

    18 pcs

    Waterproof Grade

    IP68

    Installation Method

    Magnetic&Screw

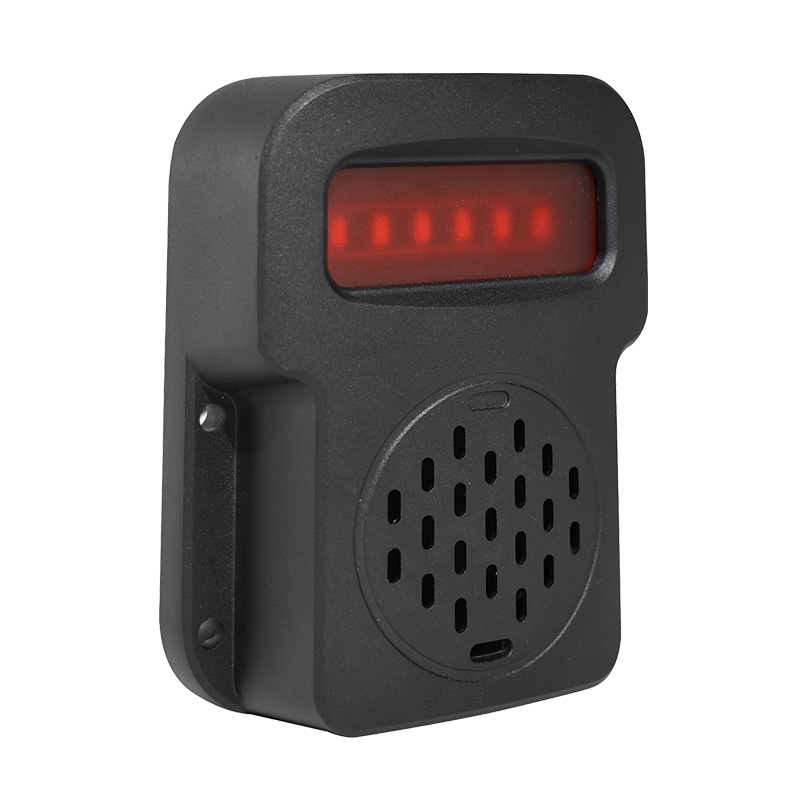

    Speaker

    Announcement Content

    Select desired alert content with a button press

    Volume

    110DB

    Strobe light

    Color

    Single-color or dual-color available

    Working temperature

    :-20-70℃

    Storage temperature

    -30-80℃
