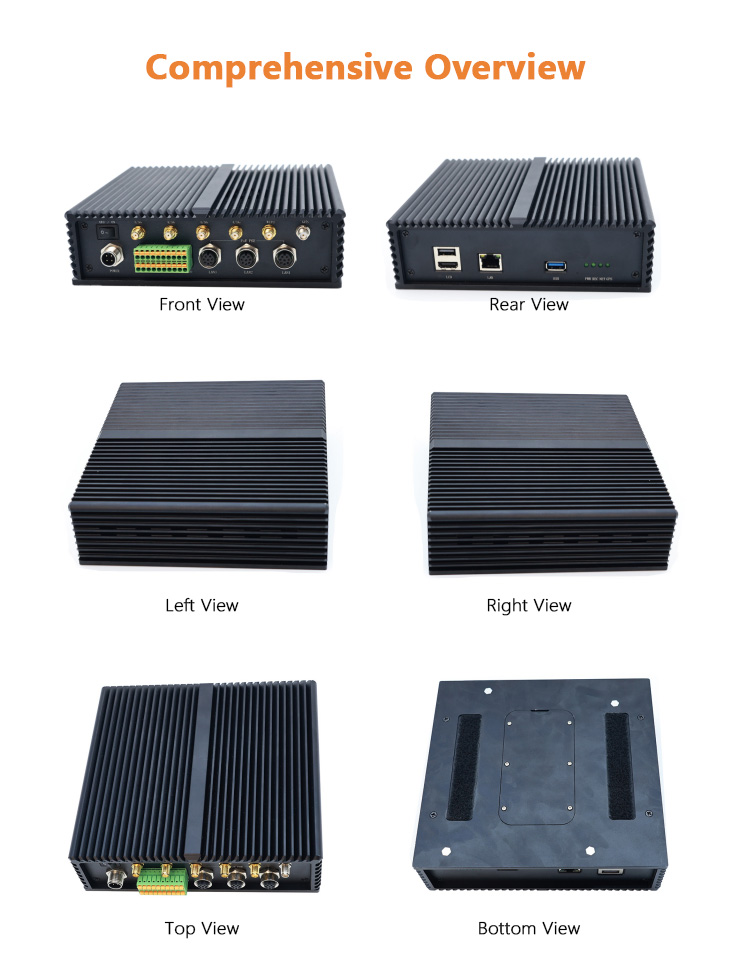

ZY-T90 Industrial Vehicle-Specific Edge Computing Terminal NVIDIA Orin 40TOPS Edge Computer with 5G RTK

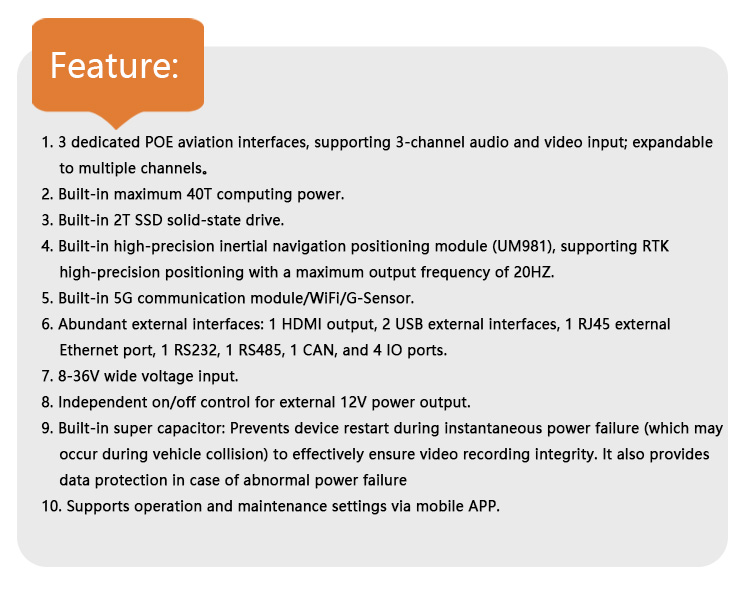

3 dedicated POE aviation interfaces, supporting 3-channel audio and video input; expandable to multiple channels.
Maximum 40T computing power.
Built-in 2T SSD solid-state drive.
Built-in high-precision inertial navigation positioning module (UM981), supporting RTK high-precision positioning with a maximum output frequency of 20HZ.
Built-in 5G communication module/WiFi/G-Sensor.

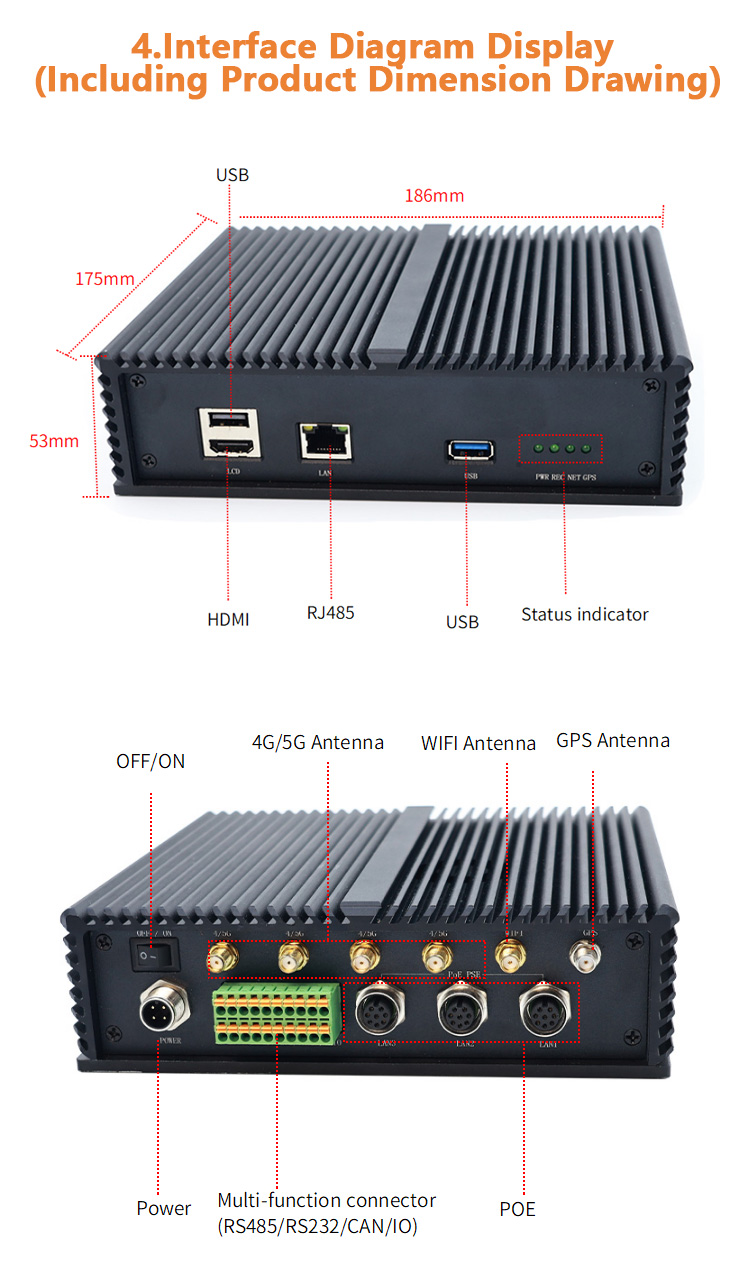

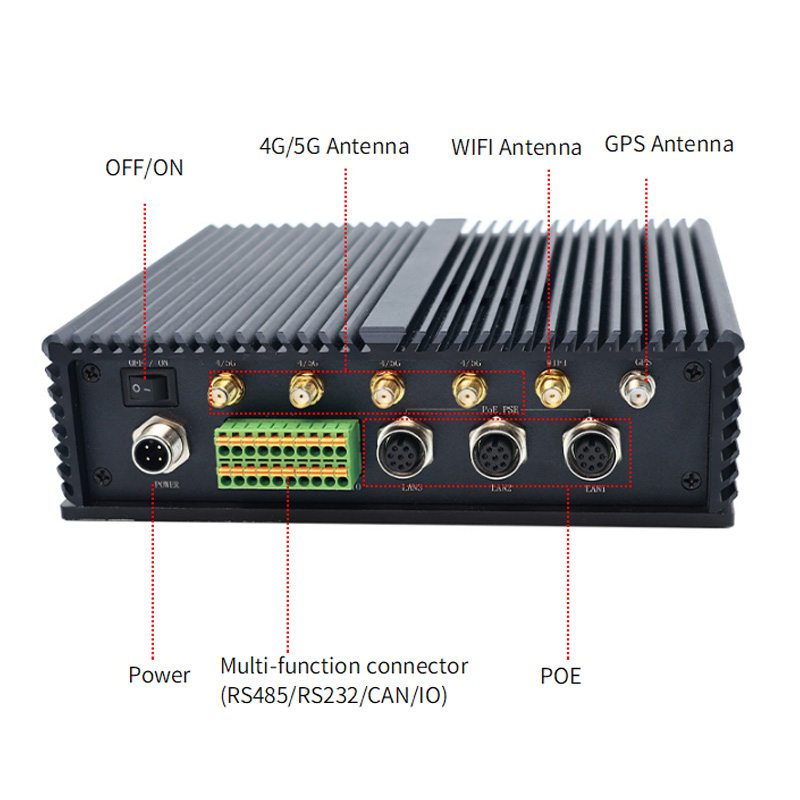

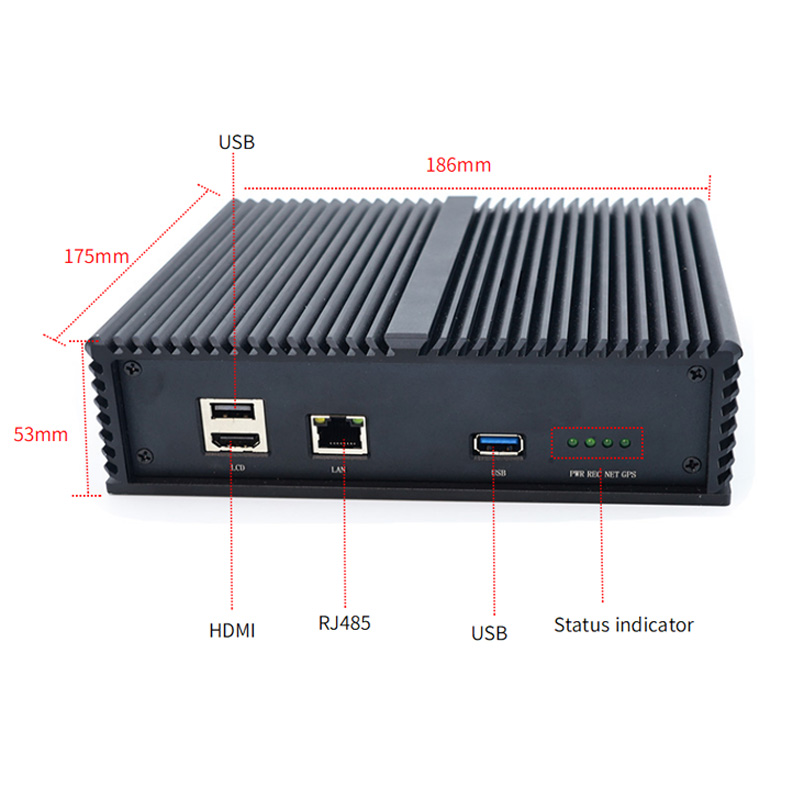

Abundant external interfaces: 1 HDMI output, 2 USB external interfaces, 1 RJ45 external Ethernet port, 1 RS232, 1 RS485, 1 CAN, and 4 IO ports.
8-36V wide voltage input.
Independent on/off control for external 12V power output.
Built-in super capacitor: Prevents device restart during instantaneous power failure (which may occur during vehicle collision) to effectively ensure video recording integrity. It also provides data protection in case of abnormal power failure.
Supports operation and maintenance settings via mobile APP.

Request a Quote

product details

product description

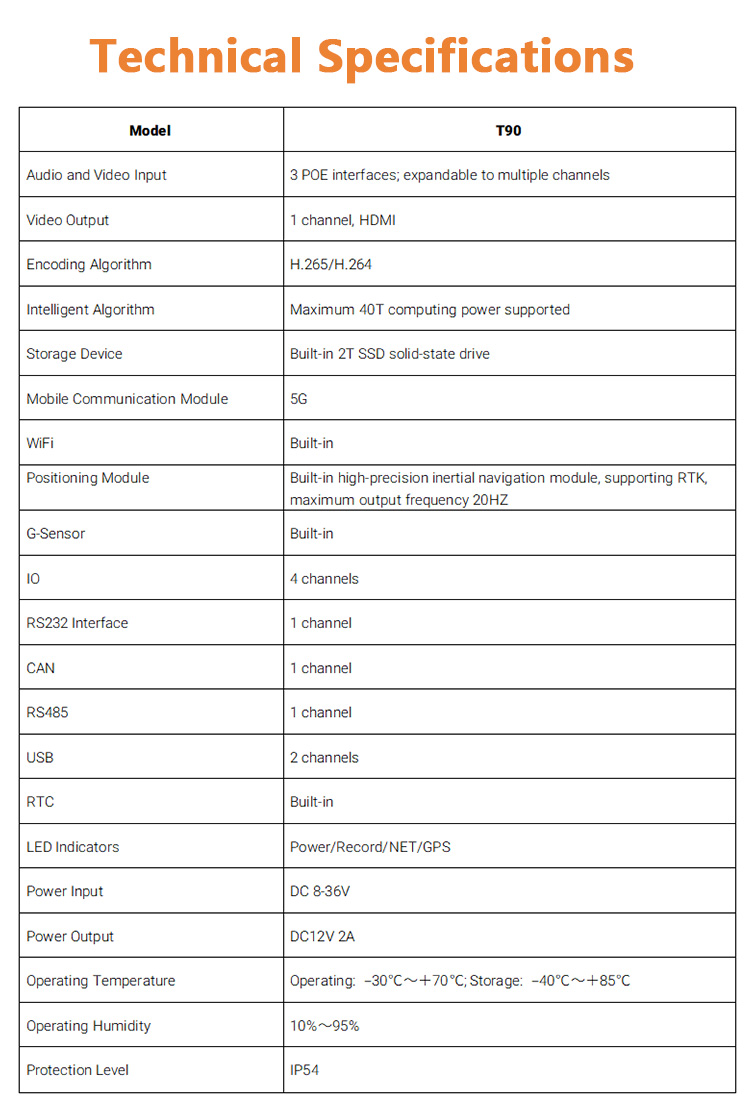

Product Details:

Model	T90
Audio and Video Input	3 POE interfaces; expandable to multiple channels
Video Output	1 channel, HDMI
Encoding Algorithm	H.265/H.264
Intelligent Algorithm	Maximum 40T computing power supported
Storage Device	Built-in 2T SSD solid-state drive
Mobile Communication Module	5G
WiFi	Built-in
Positioning Module	Built-in high-precision inertial navigation module, supporting RTK, maximum output frequency 20HZ
G-Sensor	Built-in
IO	4 channels
RS232 Interface	1 channel
CAN	1 channel
RS485	1 channel
USB	2 channels
RTC	Built-in
LED Indicators	Power/Record/NET/GPS
Power Input	DC 8-36V
Power Output	DC12V 2A
Operating Temperature	Operating: –30℃～＋70℃; Storage: –40℃～＋85℃
Operating Humidity	10%～95%
Protection Level	IP54
