01
Product Features
1. Dual AHD/CVBS Inputs - Supports 1080P/720P AHD & CVBS cameras with trigger priority switching
2. High-Resolution IPS Display - 7" 1024×600 resolution with 450cd/m² brightness for daylight visibility
3. Industrial M12 Connectors - 2 aviation male connectors with trigger line for secure installation
4. Wide Voltage Compatibility - 12-35V DC input for trucks, buses, and industrial equipment
5. AHD Technology - Delivers analog high-definition video up to 1080P resolution
6. Image Flip Function - Flexible mounting in any orientation
8. Rugged Construction - Operates in extreme temperatures (-20°C to 70°C)
9. Single View Mode - Simple, focused monitoring interface
Product Description
1. Professional Dual-Input Monitoring System
This 7-inch AHD/CVBS monitor features dual-channel inputs supporting both 1080P/720P AHD and CVBS cameras, with automatic priority switching via trigger line for seamless video transitions in commercial vehicles and security applications.
2. Premium IPS Display Performance
The 7-inch IPS LCD screen delivers superior viewing with:
1024×600 high resolution for crisp image quality
450cd/m² brightness for sunlight readability
Wide viewing angles ideal for driver visibility
3. Industrial-Grade Connectivity
Equipped with: 2 secure M12 4-pin aviation connectors (vibration-resistant)/ Dedicated trigger line for automatic input switching/ Professional-grade wiring for reliable performance
4. Advanced AHD Technology
Enjoy analog high-definition video quality:
Supports up to 1080P resolution (AHD cameras)/ Backward compatible with 720P AHD and CVBS systems/ Superior image clarity/ compared to standard analog
5. Built for Demanding Environments
12-35V wide voltage input for commercial vehicles/ Image flip function for flexible mounting options/ -20°C to 70°C operating temperature range/ -30°C to 80°C storage temperature tolerance
6. Simplified Professional Operation
Single viewing mode for focused monitoring/ Automatic input/ prioritization via trigger line/ No complicated menus - plug and play setup
7. Rugged Reliability
Designed to withstand:
Continuous vehicle vibrations/ Temperature extremes/ Dust and moisture exposure
Ideal Applications: Commercial truck & trailer systems/ Bus and fleet monitoring/ Construction equipment cameras/ Security surveillance setups/ Agricultural vehicle monitoring
Products Advantages
The M708 7-inch AHD (Analog High Definition) Monitor likely offers the following advantages
1. High Definition: AHD technology provides high-resolution video, ensuring clear and detailed imagery for enhanced visual clarity.
2.Compact Design: The 7-inch screen is portable and space-efficient, suitable for various settings without taking up too much room.
3.IPS Panel: lf it features an IPS panel, it offers wide viewing angles and consistent color reproduction from any viewing position.
4. Brightness and Contrast: Designed with good brightness and contrast ratios for visibility in different lighting conditions.
5.Energy Efficiency:Smaller monitors typically consume less power, contributing to lower energy costs.
6.Through the menu, we can flip and mirror the image, and choose to turn on or off the reversing line

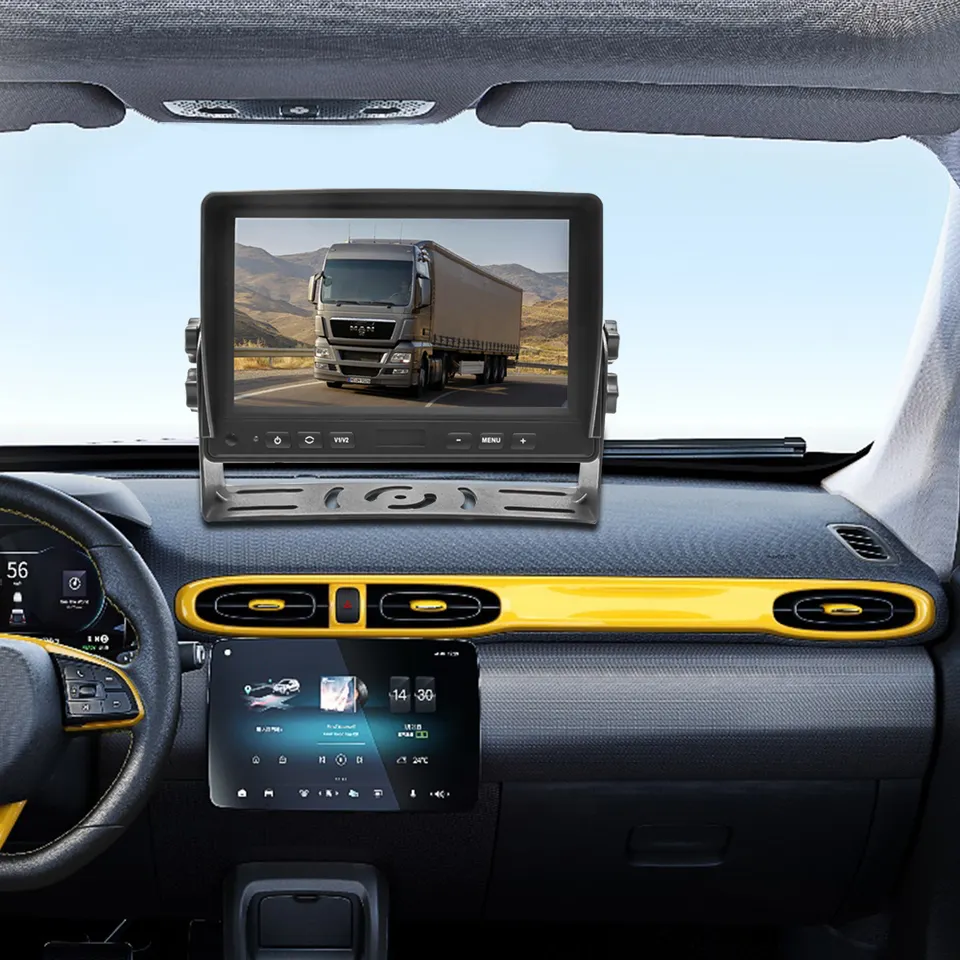

7.The installation method can be bracket installation on the instrument panel or embedded installation. To meet the needs of different vehicles
This M708 7-inch AHD Monitor would be an excellent choice for users seeking a high-definition portable, and user-friendly display solution for surveillance or monitoring needs
Parameters
| Item | Parameters |
| Screen Resolution | 1024*600 |
| Voltage | DC12V-DC35V |
| Input signal | AHD1080P/720P CVBS |
| Display mode | Support 2CH,AV1/AV2 |
| Flip | Support |
| Guide line | On/off |
| Mirror function | On/off |
| Trigger | Support |
| Power consumption | 500mA |
| Operating temperature | -20℃-70℃ |
| Storage temperature | -30℃-80℃ |
| Language | Chinese, English, Korean, Japanese, Russian, French, etc. |
| Interface | 4pin aviation connetor: 1-power; 2-ground; 3-NC; 4-video (corresponding to aviation interface numbers) |
| Protection level | More than IK07 |
| Operating mode | Button/Infrared remote control |
| LOGO | Customizable |

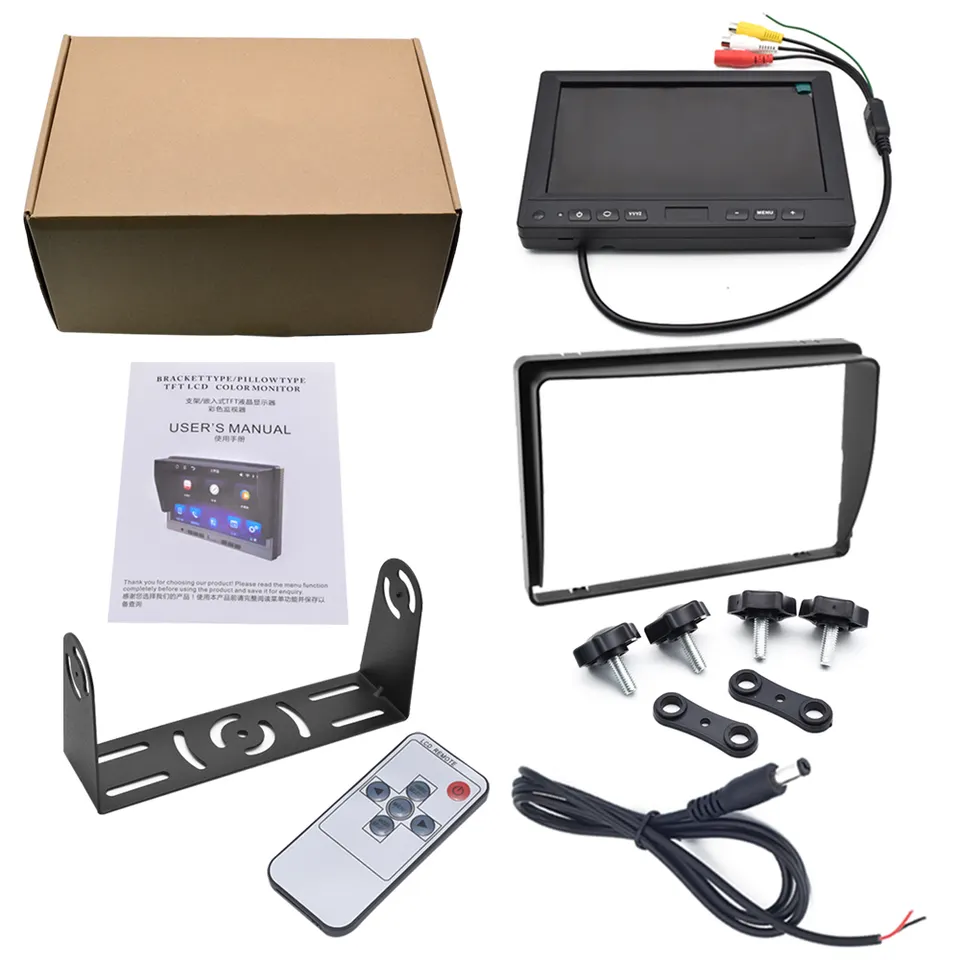

Accessory List
7--inch monitor * 1
U type bracket * 1
3M adhesive paper*1
3M adhesive paper*1
Remote control*1
Detachable sunshade*1
Factory Slogan
Leading Technology, Top Service!
Factory Capacity
Annual output value：100 million
Monthly production: 200000pcs/per Month
MOQ: 1000pcs
Quality guarantee& After-Sales Supports
Warranty period: 1 year.
After-sales service: During the warranty period, if the product has quality problems or malfunctions, consumers can enjoy after-sales services such as repair.
After-sales service costs: If there is a problem with the product that is not covered by the warranty, consumers may need to pay for repairs.
After-sales service process: Consumers can apply for after-sales service through customer service phone numbers, online channels, or at physical stores.
Factory Supports
OEM、 ODM、 LOGO-Customizable
Factories typically provide customers with support in the following areas:
1、Customized services: Customize product specifications, design and packaging according to customer needs to meet customers' special needs.
2、Technical support: Provide product technical parameters, operating instructions, technical training and other support to help customers better understand and use the product.
3、After-sales service: Provide product warranty period and after-sales service policy, including repair, replacement and return services, to ensure that customers have complete after-sales protection after purchase.
4、Supply chain support: Provide product supply cycles and logistics arrangements to ensure that products can be delivered to customers on time.
5、Market support: Provide marketing materials, promotional activity support, etc. to help customers promote product sales.
Patents & Certificate
IS09001:2015、IATF16949:2016、E-Mark、CE、ROHS、SGS、RED
QC Control
QC、IQC、IPQC、QA、FQC、OQC
