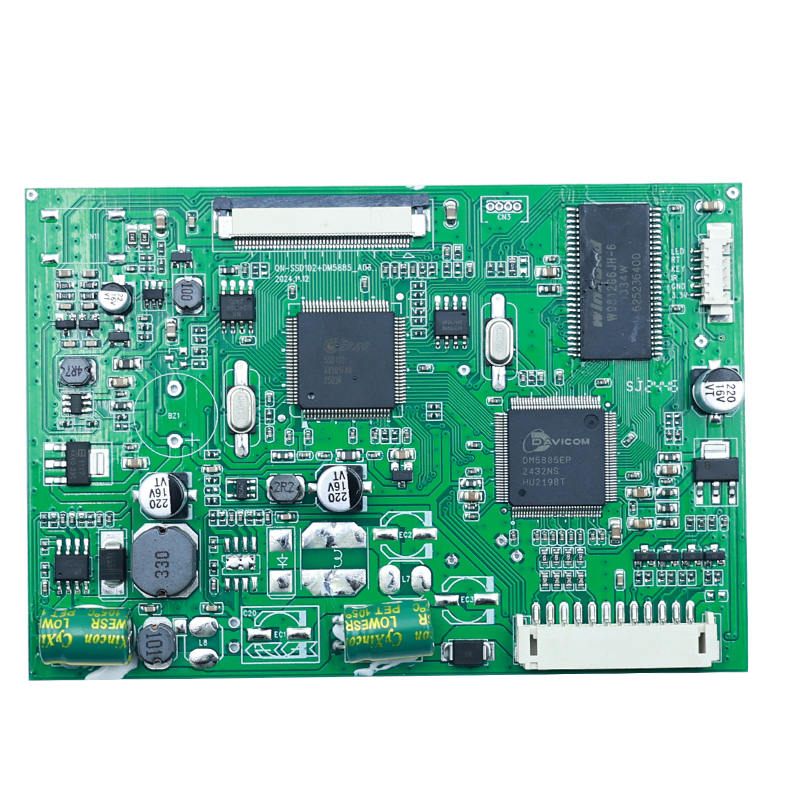

ZY-D141-4CH AHD DVR Driver Motherboard With 4CH AHD 720P/1080P Input Signal Compatible with Analog Signals

This AHD driver motherboard is a high-performance core component that supports 7-inch, 9-inch and 10.1-inch RGB LCD screens. It features 4-channel signal input with 3-channel trigger signals.

Equipped with real-time recording function and multiple split modes, it supports up to 512GB memory for stable footage storage and flexible multi-channel signal display.

Request a Quote

product details

selling point:

1 . Wide Voltage Design :DC12-35V

2 . Multi-Signal Input Support: Compatible with AHD720P, AHD1080P high-definition signals and CVBS analog signals.

3. 4CH input signals with 3 triggers

4. Real-Time Recording & Large Storage Support: Enables real-time recording function, with maximum support for 512GB memory to store monitoring footage

Specification:

Power Supply	DC 10V~35V
LCD Size	7inch/9inch/10.1inch
Input signal	4CH with 3 triggers,AHD 720P/AHD 1080P,CVBS
Menu	Brightness,Color,Contrast,Language,Flip,Mirror,Reversing Line,Loop recording time...
Display Mode	single-view, 2-split, 3-split, and 4-quad modes
Operating Temperature	-20℃~+70 ºC
Storing Temperature	-25℃~+75 ºC
