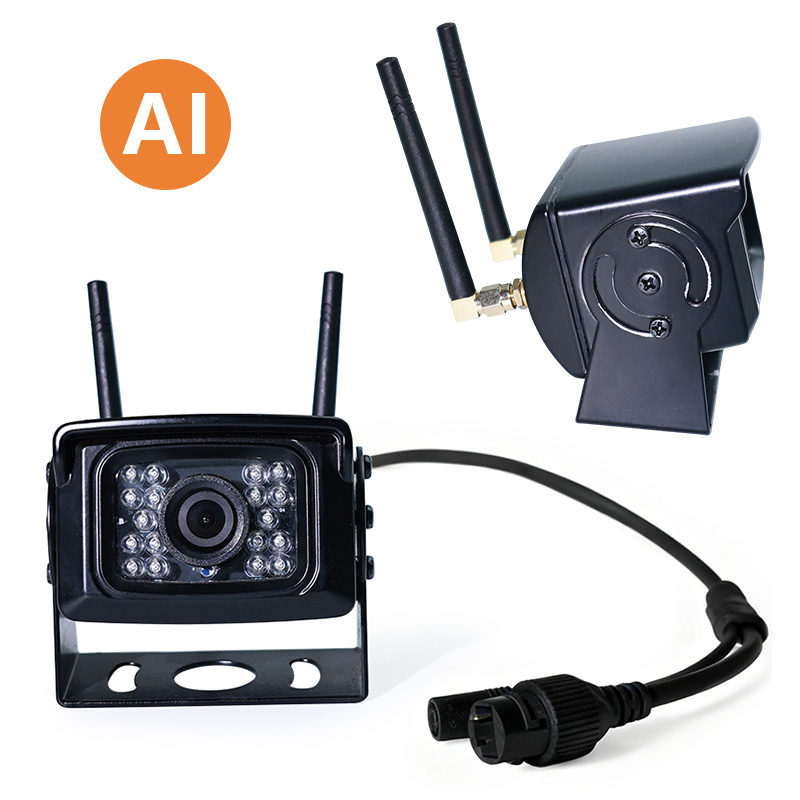

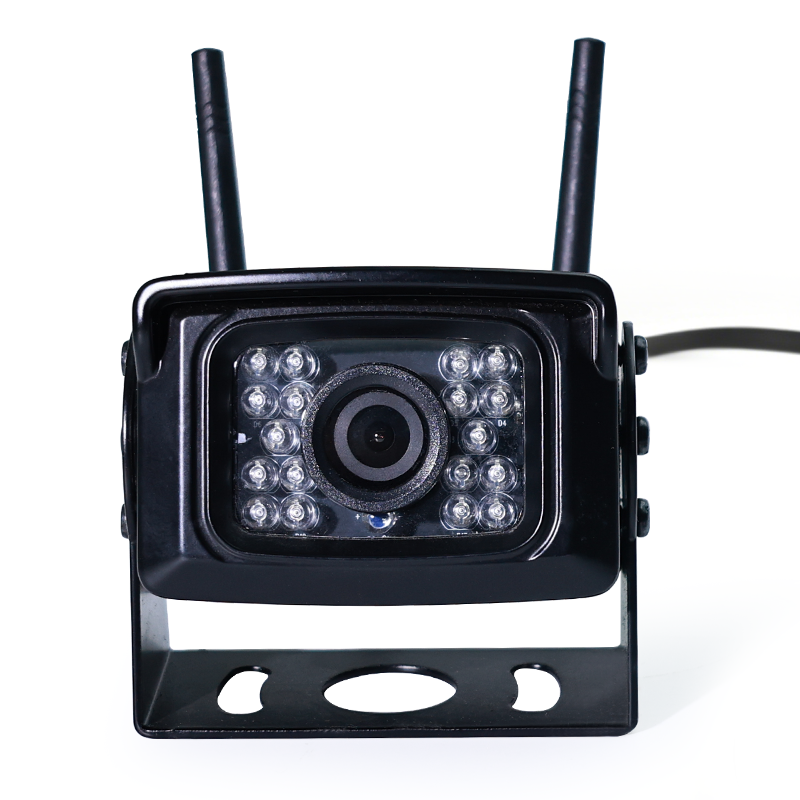

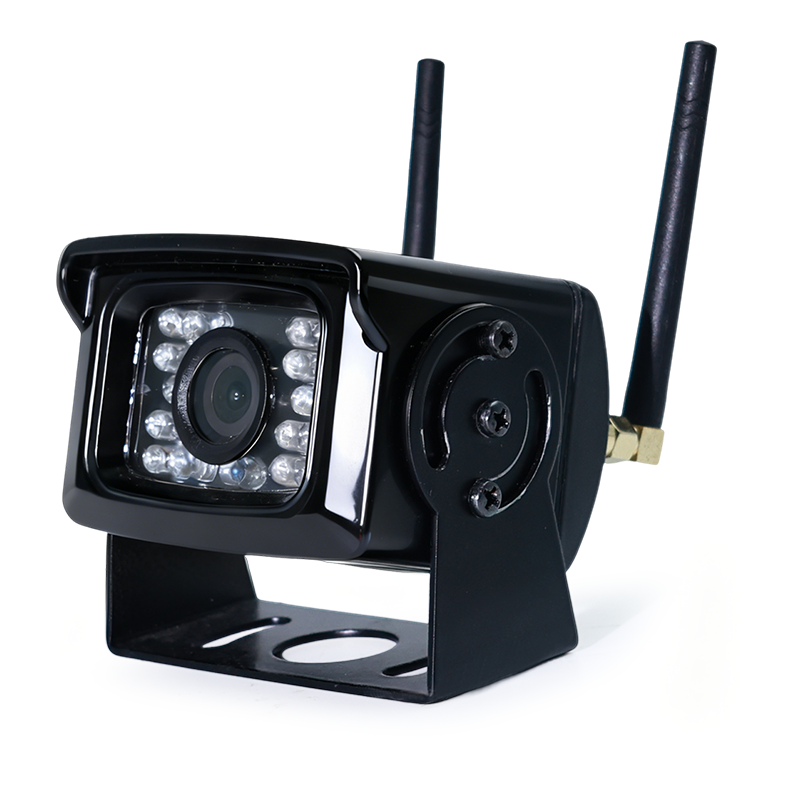

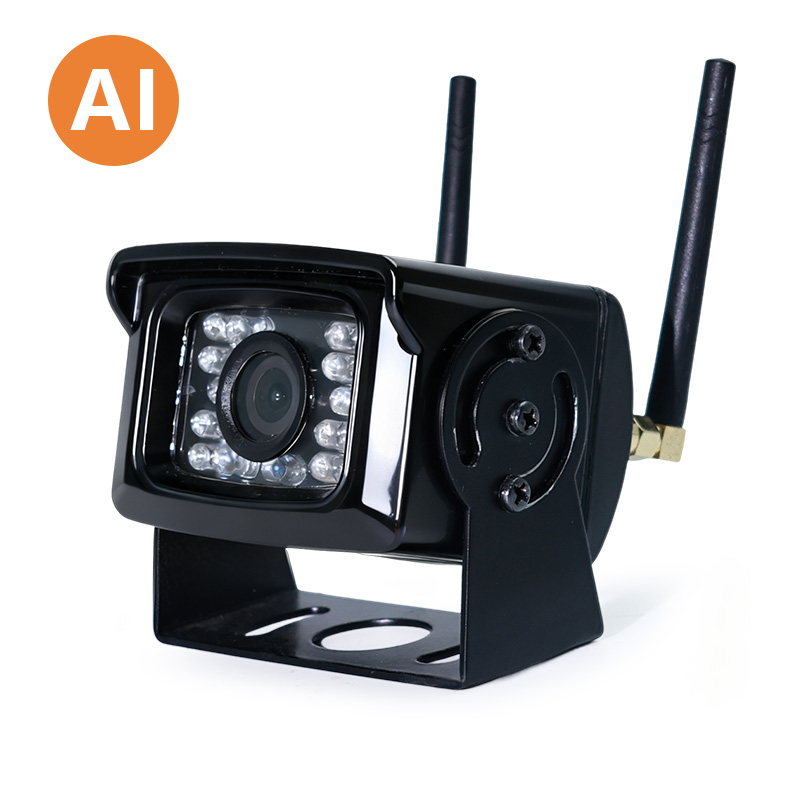

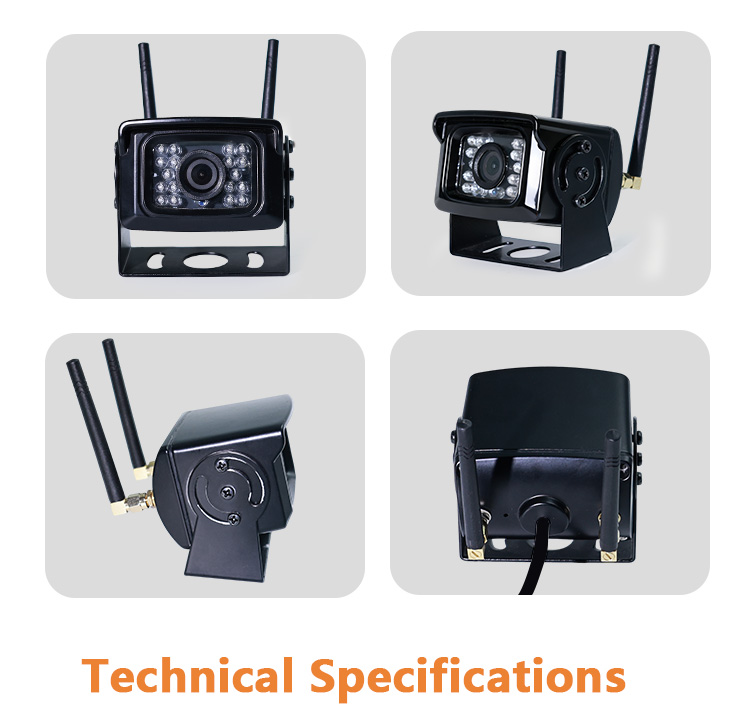

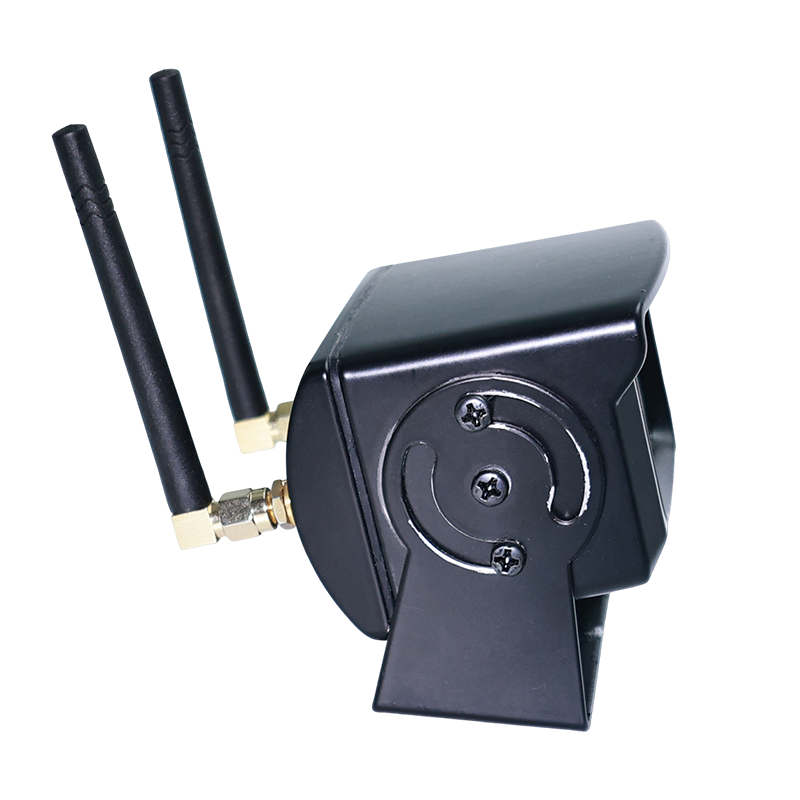

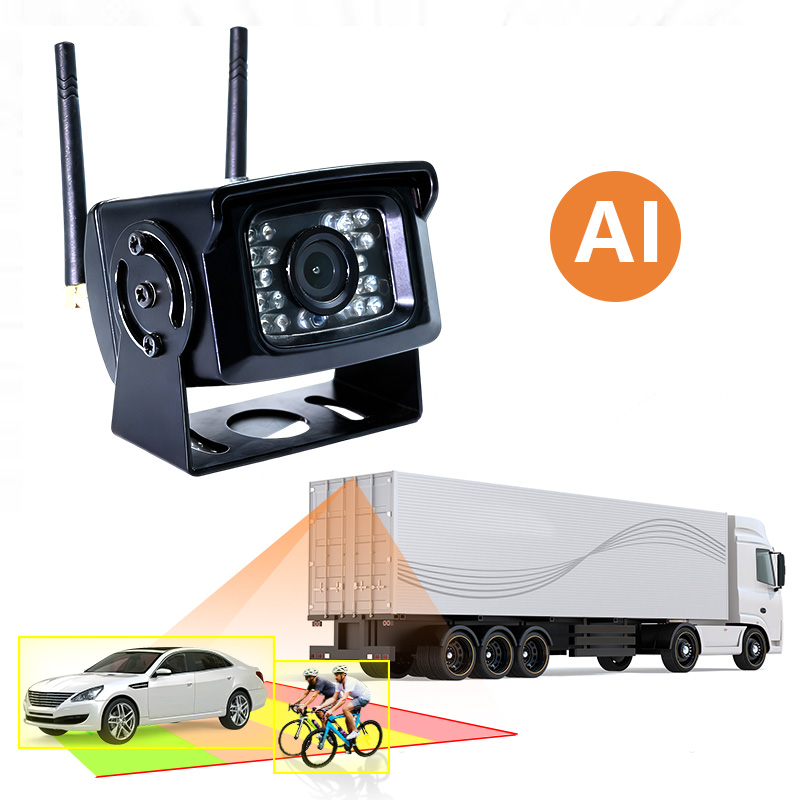

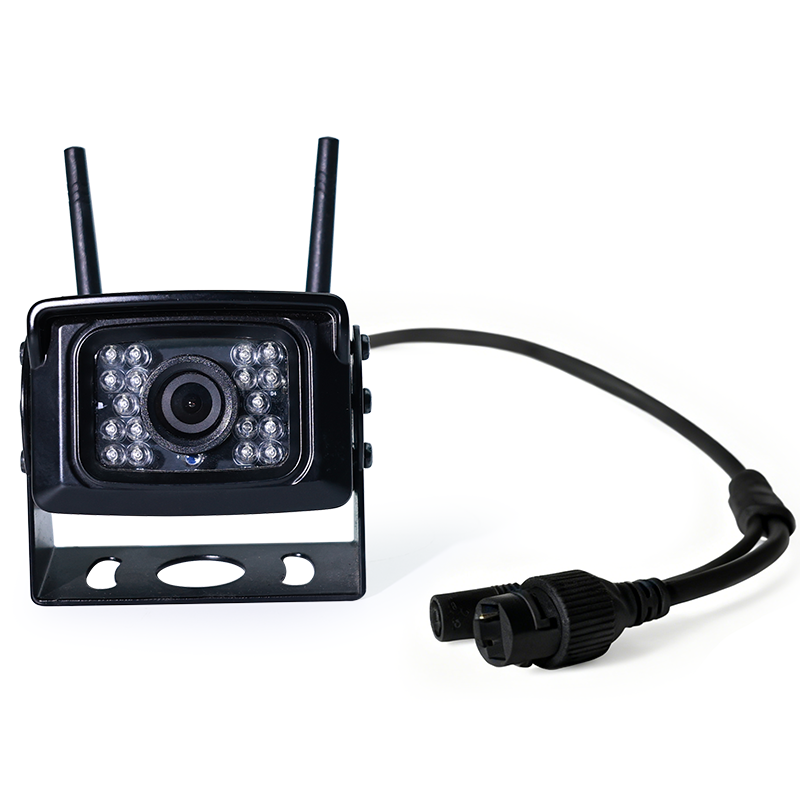

ZY-CM01 Fleet Management Waterproof Camera with 4G GPS WiFi Remote View And RTSP Stream Support

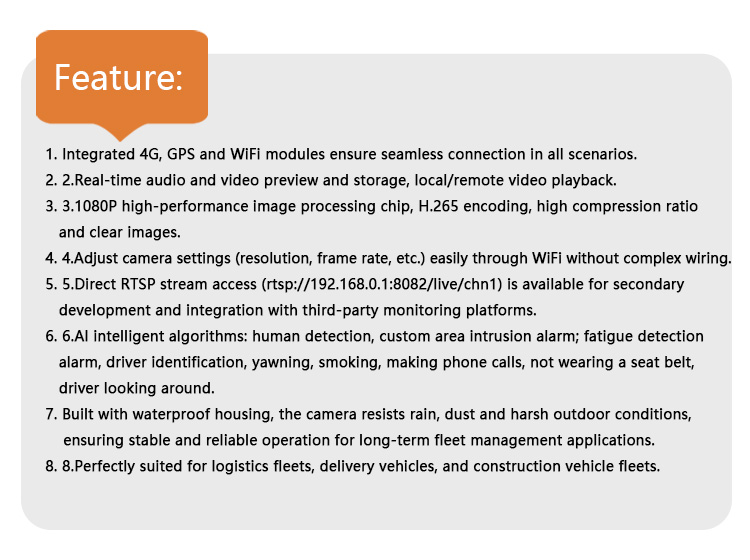

Features:
1. Integrated 4G, GPS and WiFi modules ensure seamless connection in all scenarios
2. Real-time audio and video preview and storage, local/remote video playback

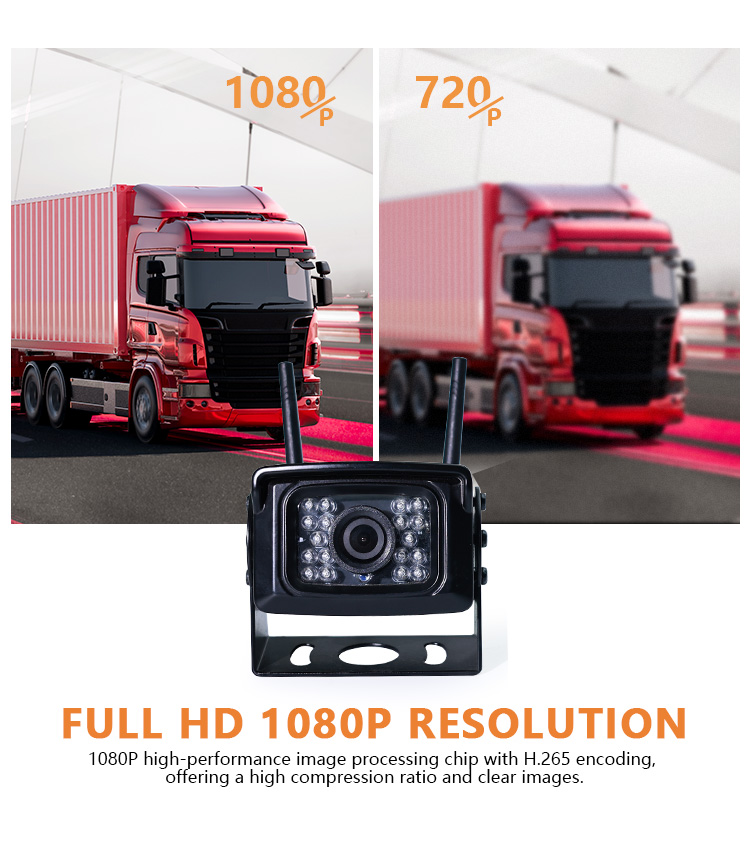

3. 1080P high-performance image processing chip, H.265 encoding, high compression ratio and clear images
4. Adjust camera settings (resolution, frame rate, etc.) easily through WiFi without complex wiring

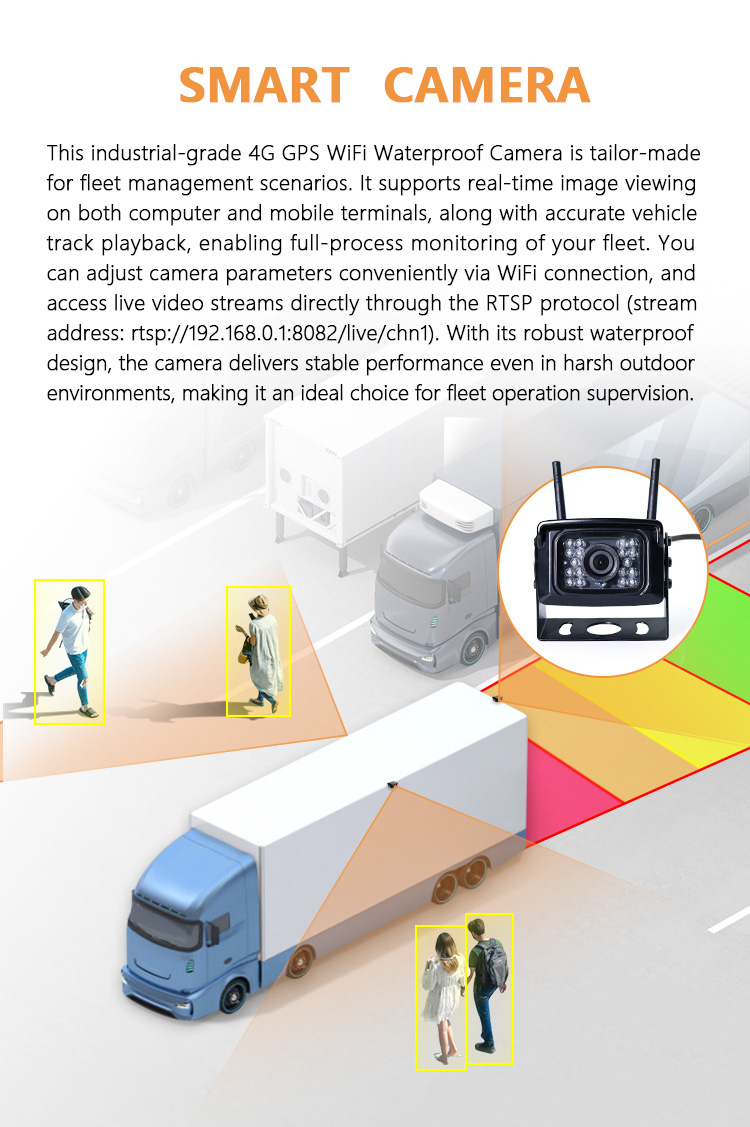

5. Direct RTSP stream access (rtsp://192.168.0.1:8082/live/chn1) is available for secondary development and integration with third-party monitoring platforms.
6. AI intelligent algorithms: human detection, custom area intrusion alarm; fatigue detection alarm, driver identification, yawning, smoking, making phone calls, not wearing a seat belt, driver looking around.

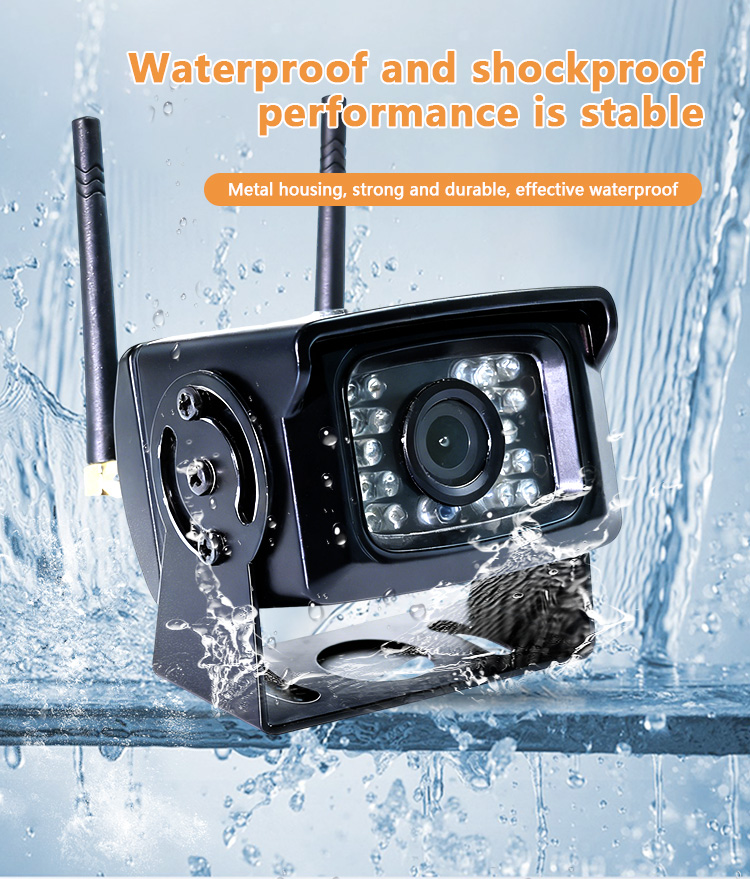

7. Built with waterproof housing, the camera resists rain, dust and harsh outdoor conditions, ensuring stable and reliable operation for long-term fleet management applications.
8. Perfectly suited for logistics fleets, delivery vehicles, and construction vehicle fleets

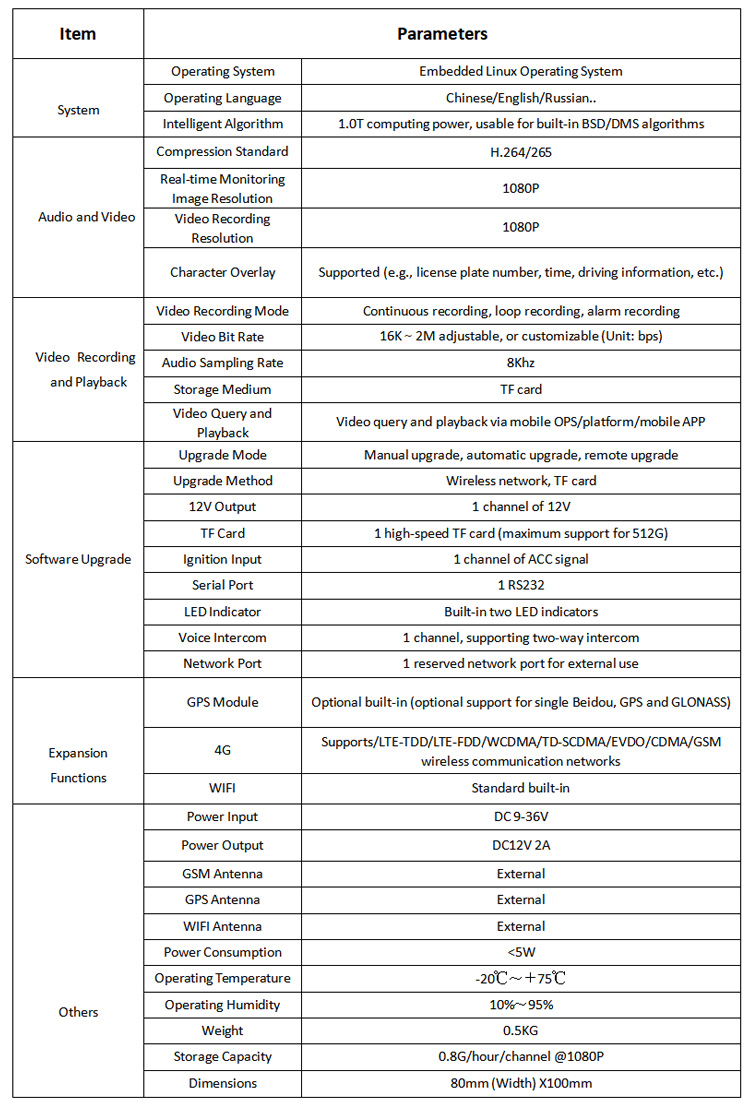

Specification:
|
Item |
Parameters |
|
|
System |
Operating System |
Embedded Linux Operating System |
|
Operating Language |
Chinese/English/Russian.. |
|
|
Intelligent Algorithm |
1.0T computing power, usable for built-in BSD/DMS algorithms |
|
|
Audio and Video |
Compression Standard |
H.264/265 |
|
Real-time Monitoring Image Resolution |
1080P |
|
|
Video Recording Resolution |
1080P |
|
|
Character Overlay |
Supported (e.g., license plate number, time, driving information, etc.) |
|
|
Video Recording and Playback |
Video Recording Mode |
Continuous recording, loop recording, alarm recording |
|
Video Bit Rate |
16K～2M adjustable, or customizable (Unit: bps) |
|
|
Audio Sampling Rate |
8Khz |
|
|
Storage Medium |
TF card |
|
|
Video Query and Playback |
Video query and playback via mobile OPS/platform/mobile APP |
|
|
Software Upgrade |
Upgrade Mode |
Manual upgrade, automatic upgrade, remote upgrade |
|
Upgrade Method |
Wireless network, TF card |
|
|
12V Output |
1 channel of 12V |
|
|
TF Card |
1 high-speed TF card (maximum support for 512G) |
|
|
Ignition Input |
1 channel of ACC signal |
|
|
Serial Port |
1 RS232 |
|
|
LED Indicator |
Built-in two LED indicators |
|
|
Voice Intercom |
1 channel, supporting two-way intercom |
|
|
Network Port |
1 reserved network port for external use |
|
|
Expansion Functions |
GPS Module |
Optional built-in (optional support for single Beidou, GPS and GLONASS) |
|
4G |
Supports/LTE-TDD/LTE-FDD/WCDMA/TD-SCDMA/EVDO/CDMA/GSM wireless communication networks |
|
|
WIFI |
Standard built-in |
|
|
Others |
Power Input |
DC 9-36V |
|
Power Output |
DC12V 2A |
|
|
GSM Antenna |
External |
|
|
GPS Antenna |
External |
|
|
WIFI Antenna |
External |
|
|
Power Consumption |
<5W |
|
|
Operating Temperature |
-20℃～＋75℃ |
|
|
Operating Humidity |
10%～95% |
|
|
Weight |
0.5KG |
|
|
Storage Capacity |
0.8G/hour/channel @1080P |
|
|
Dimensions |
80mm (Width) X100mm |
|
