01
Products Features

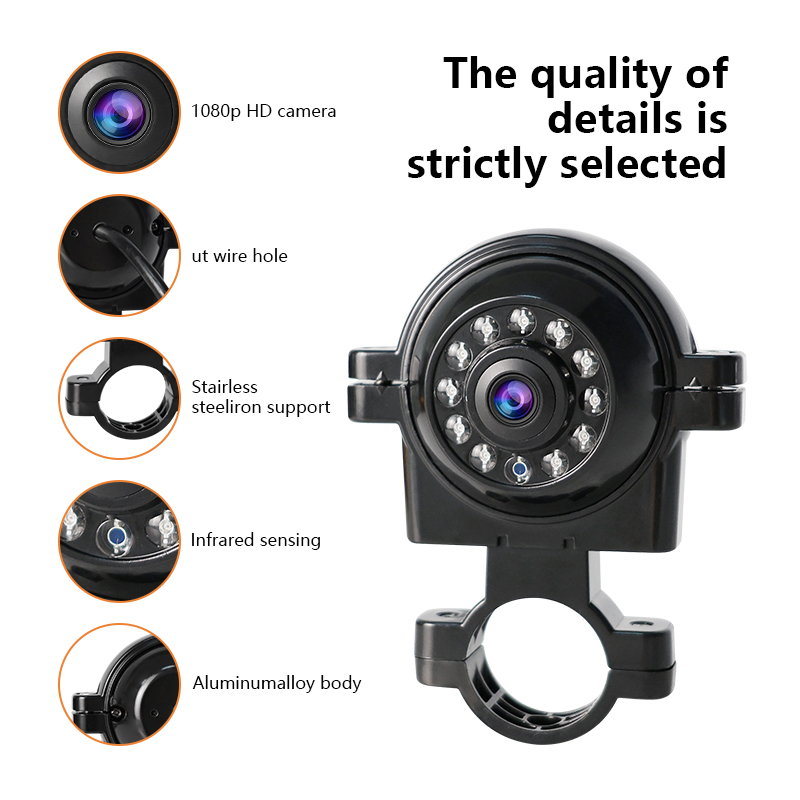

1. Full HD 1080P Resolution – Crystal-clear side monitoring for blind spot elimination
2.12 High-Power IR LEDs – Superior night vision (0 Lux) with up to 10m visibility
3. 115° Ultra-Wide Glass Lens – Expands coverage and reduces blind zones

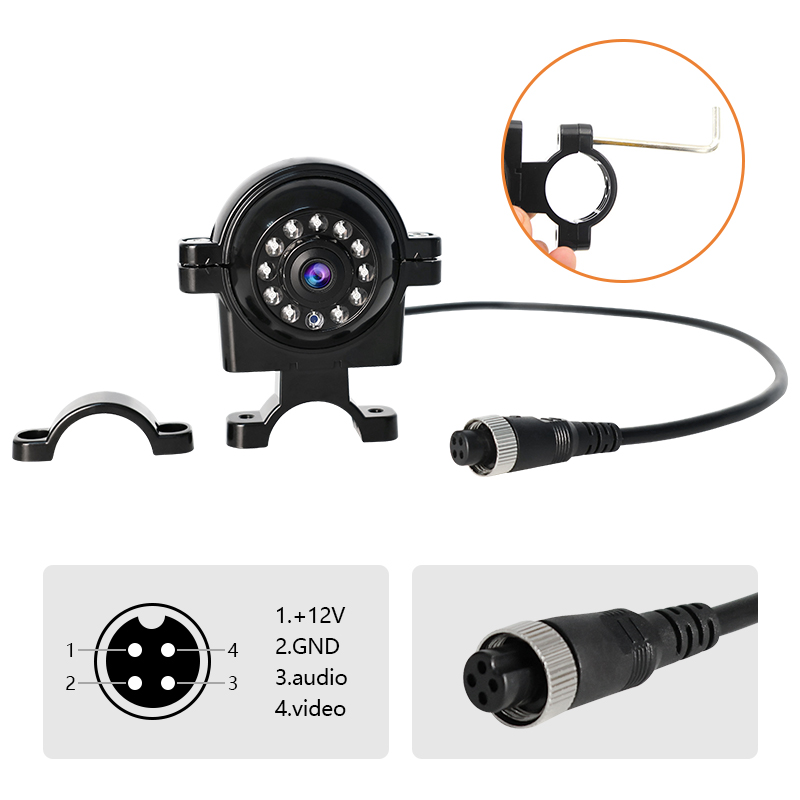

4. IP68 Waterproof & Metal Housing – Heavy-duty protection against dust, water, and impacts
5. Auto White Balance – Ensures optimal image quality in all lighting conditions
6. Secure M12 4-Pin Connector – Vibration-proof, corrosion-resistant connection
7. Wide Temp Range (-20°C to +70°C) – Reliable performance in extreme weather
8. Easy Plug-and-Play Installation – Quick setup for trucks, buses, and RVs
Products Description

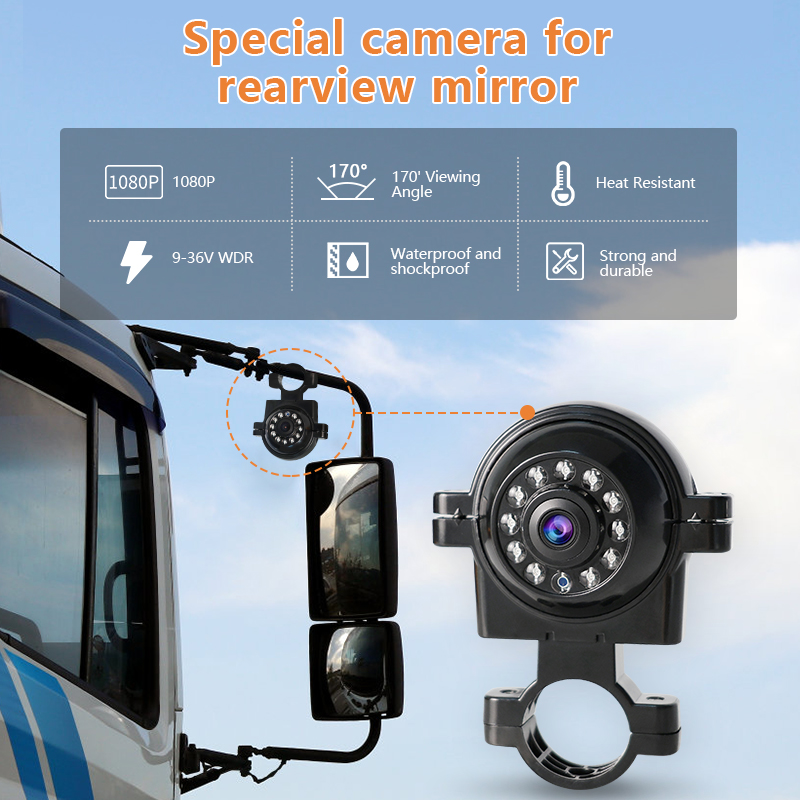

1. Enhanced Side Visibility with Night Vision
This AHD 1080P Side View Camera is engineered to eliminate blind spots and enhance safety for commercial vehicles. Equipped with 12 advanced IR LEDs, it delivers 0 Lux night vision, ensuring clear visibility even in complete darkness. The 115° wide-angle glass lens maximizes coverage, while auto white balance maintains true colors in any lighting.

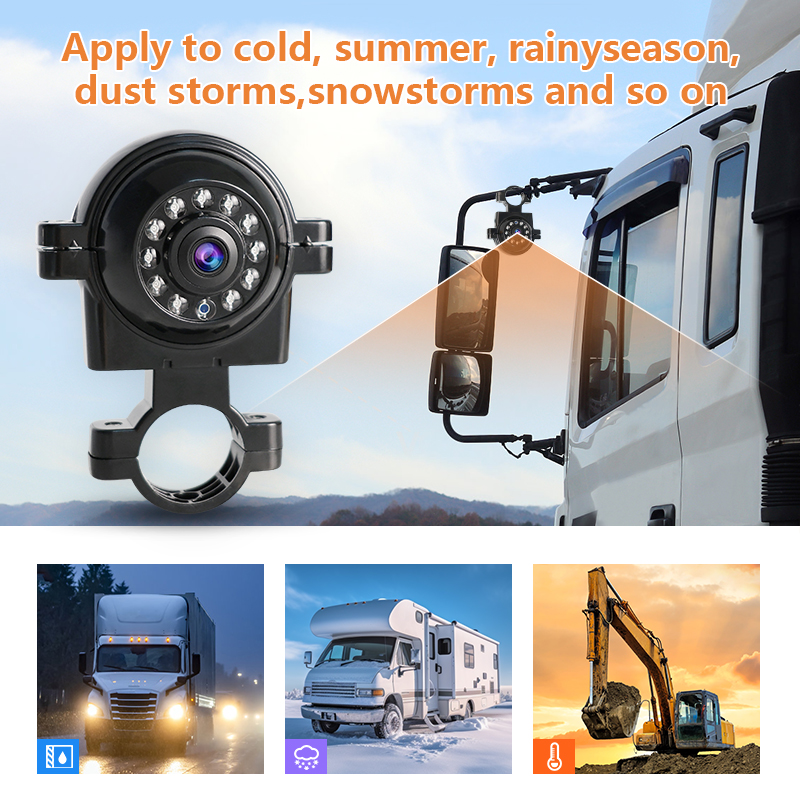

2. Built for Durability & Harsh Environments
IP68-rated metal housing – Resists water, dust, and vibrations
3. Industrial-grade M12 4-pin connector – Ensures a stable, long-lasting connection
4. Extended temperature resistance – Operates flawlessly from -20°C to +70°C
5. 12V DC power compatibility – Works seamlessly with most vehicle systems

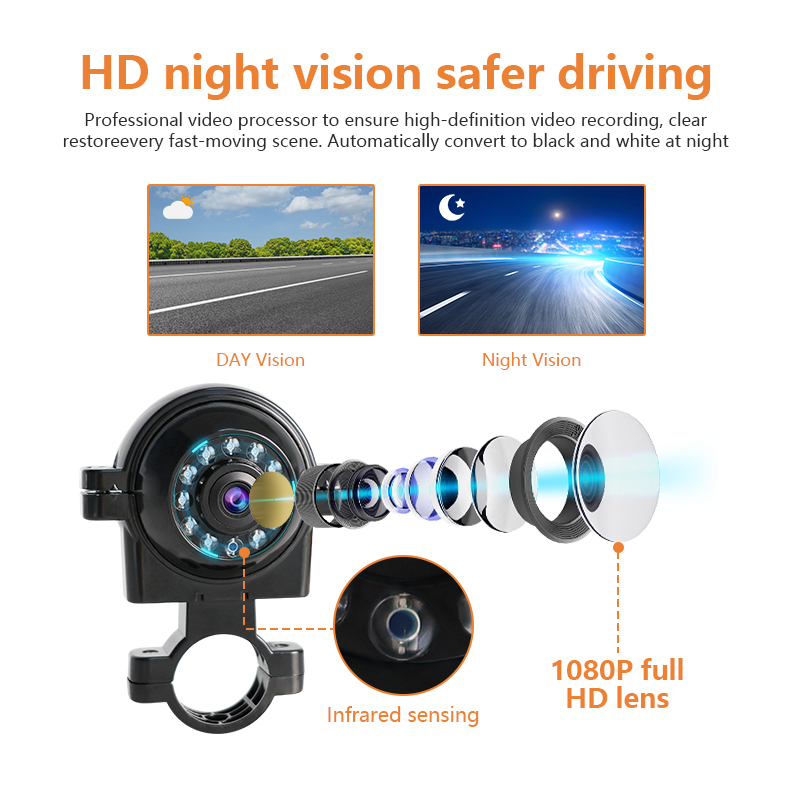

6. Superior Night Vision Performance
12 high-intensity IR LEDs provide illumination up to 10m
0 Lux capability ensures visibility in pitch-black conditions
Auto IR cut filter for smooth transition between day and night modes
7. Easy Installation & Universal Compatibility
Compact, low-profile design for hassle-free mounting
8. Plug-and-play setup with standard vehicle wiring

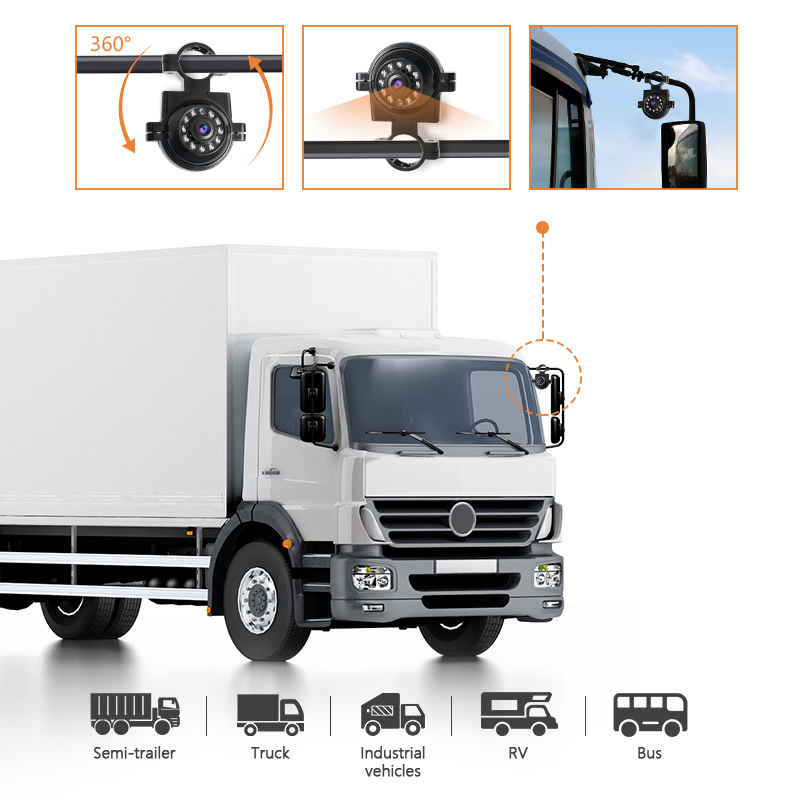

9. Ideal for: Trucks & Trailers/ Buses & RVs/ Construction & Fleet Vehicles/ Marine & Off-Road Applications
Packing Details
Packing box: 97*97*85mm
Single weight: 300g
Carton size: 50*27.2*26cm
75 units per box
Products advantages
The ZY-C862 is a state-of-the-art CBVS IP68 waterproof mount truck camera, designed to offer unparalleled side view capabilities for a variety of large vehicles, including trucks and RVs. This camera is meticulously crafted to meet the stringent demands of heavy-duty transportation, providing crystal-clear images even in the most challenging weather conditions. The IP68 rating ensures that the ZY-C862 can endure high-pressure water jets and is suitable for use in the toughest environments, from torrential downpours to dusty off-road excursions. The ZY-C862's high-resolution sensors and advanced imaging technology deliver sharp, detailed images, making it easier for drivers to detect obstacles and navigate with confidence. This camera is not only a technological marvel but also a testament to the fusion of durability, reliability, and user-centric design, setting a new standard in side view camera systems for the transportation industry.
Products Parameters

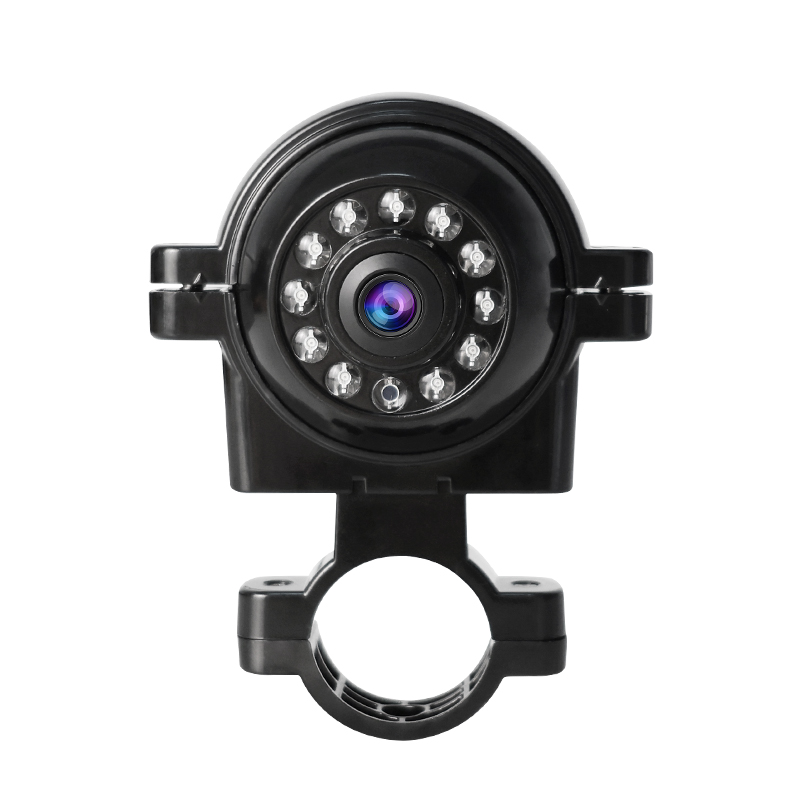

| 1、Product Name | Mounted camera |
| 2、Model No | ZY-C862-AHD |
| Camera | |
| 1、Camera Solution: | AHD720P/AHD1080P |
| 2、Waterproof rating. | IP 68 |
| 3、lmage Sensor. | 1/2.9 |
| 4、Lens and View angle. | 2.8mm 120degree |
| 5、Minimum illumination: | 0 lux IR on |
| 6、CDs night version change. | Yes |
| 7、Power supply: | 12V |
| 8、Relative humidity: | less than 90% |
| 9、Working temperature. | -20°C-70°C |
| 10、Storage temperature | -30°C-80°C |
| 11、Shell material: | Metal |
| 12、Interface: | 4pin |
Accessories
Camera\Cable\Screw\Box\instruction book
Factory Slogan
Leading Technology, Top Service!
Factory Capacity
Annual output value：100 million
Monthly production: 200000pcs/per Month
MOQ: 1000pcs
Quality guarantee& After-Sales Supports
Warranty period: 1 year.
After-sales service: During the warranty period, if the product has quality problems or malfunctions, consumers can enjoy after-sales services such as repair.
After-sales service costs: If there is a problem with the product that is not covered by the warranty, consumers may need to pay for repairs.
After-sales service process: Consumers can apply for after-sales service through customer service phone numbers, online channels, or at physical stores.
Factory Supports
OEM、 ODM、 LOGO-Customizable
Factories typically provide customers with support in the following areas:
1、Customized services: Customize product specifications, design and packaging according to customer needs to meet customers' special needs.
2、Technical support: Provide product technical parameters, operating instructions, technical training and other support to help customers better understand and use the product.
3、After-sales service: Provide product warranty period and after-sales service policy, including repair, replacement and return services, to ensure that customers have complete after-sales protection after purchase.
4、Supply chain support: Provide product supply cycles and logistics arrangements to ensure that products can be delivered to customers on time.
5、Market support: Provide marketing materials, promotional activity support, etc. to help customers promote product sales.
Patents & Certificate
IS09001:2015、IATF16949:2016、E-Mark、CE、ROHS、SGS、RED
QC Control
QC、IQC、IPQC、QA、FQC、OQC
Solutions
Fire Service Commanding Car, Van, Tanker, Liquified Gas Taner, Beverage Tanker, Loading Machine, Scraper type Loading Machine, Tower Crane, Truck Crane，Truck、 Van、Cargo Truck、Box Truck、Dump Truck、Excavator Truck、Mixer Truck、Tractor Truck、Flatbed Truck、Tanker Truck、Crane Truck、Sweeper Truck、Fire Truck、Ambulance、Compactor Truck、Tank Truck、Garbage Truck、Refrigerated Truck、Trailer、Alloy Tank Truck、Explosive Truck、Cleaning Truck、Sand Truck、Cold Chain Truck、Stake Truck、Explosion-proof Truck、Sewage Suction Truck、Flat Truck、Vertical Truck、Lu Truck、Refrigerated Trailer、Concrete Pump Truck、Gasoline Water Mix、Tractor、Seeder、Combine Harvester、Spraye、Trailer Sprayer、Agricultural Transporter、Soil Cultivation Vehicle、Feed Mixer Wagon、Trailer Garbage Truck、Drip Irrigation Machine
Shipping & Production
Shipping: Sea、Container、FEDEX、DHL、UPS、SF、Alibaba Logistic
Production:
Sample: 1-5days
100-500pcs: 5-15days
500-1000pcs: 7-20days
1-5Kpcs: 12-30days
5-10Kpcs: 15-30days
Factory Introduction
ZYX Co., Ltd. was established in 2014. It is a high-tech enterprise integrating R&D, production and sales. The factory covers an area of 10000 square meters and has 150 employees. Focus on the field of automotive electronics, the main products are: Car camera, car monitor, car video recorder MDVR, car rearview system, radar detection system, electronic rearview mirror, driving recorder, 360 bird view system, image vision sensor, camera module, LCD Driver Board, autonomous driving assistance system, ADAS, DMS, BSD, etc.
At present, it has 6 SMT mounters, 4 assembly lines and other advanced equipment to ensure quality and production capacity.
